Fral Avalanche FACSW51 Water-Cooled Split Air Conditioner - 3 Phase 15kW

Fral Avalanche FACSW51 Water Split Portable Air Conditioner

Three phase 15kW split air condition system for offices, hospitals or hospitality

The Fral Avalanche FACSW51 Water Split Portable Air Conditioner is a powerful 15kW portable water-cooled air-conditioning unit that can cool large spaces up to 110m2 with a maximum airflow of 2,300m3h. The Fral Avalanche portable air conditioner delivers impressive cooling power using a three phase power supply, which makes it perfect for heavy-duty use in computer suites, offices, hospitals, portable buildings or hospitality.

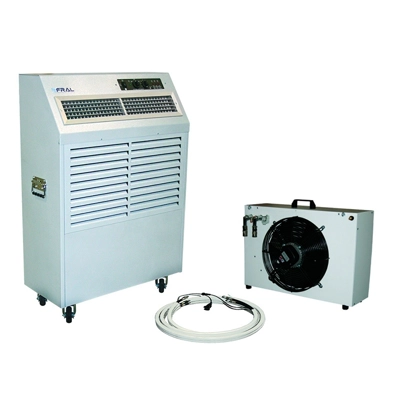

The Avalanche FACSW51 comes with an external unit, which can be positioned up to 30m away from the main unit thanks to glycol fast connecting umbilical lines. 20m line is included & the 30m umbilical line is available as an optional accessory. Designed with a self-contained chilled water system, this water split portable air conditioner circulates water through a cooled condenser. Heat is absorbed before being pumped to the outdoor unit where it is cooled and then recirculated back inside.

A built-in thermostat regulates the indoor air temperature to the set level required and can operate down to a temperature of 10°C, while a hot gas system helps accelerate the defrosting of any ice that forms on the evaporator.

The Fral Avalanche FACSW51 is made of sturdy galvanized steel, which is painted with epoxy powder to ensure high resistance to atmospheric agents and aggressive environments. The panels are also removable to allow quick inspection and maintenance of internal parts. The FACSW51 features a microprocessor that controls the defrosting cycles, compressor timer, temperature and alarm. Plus, the unit is equipped with step sequence control.

One of the most versatile portable air conditioning unit on the market, the Fral Avalanche 15kW water cooled split air conditioner is easy to install with quick connect couplings on the water lines. The Avalanche split unit has been designed for fast installation and start-up, requiring just a three phase power supply. It is a free-standing unit and can cool specific areas by utilising the three-speed fan outlet at the front of the unit.

Cooling Capacity: 15kw/ 50000 Btu/hr
Weight: 140kg
H x W x D: 1074 x 1513 x 414mm
Suitable Area: 100m2
Operating Range: 10 - 35°C
Noise Rating: 51dba
Line Length: Up to 30m (20m line included)
Line Diameter: 50mm
Tank Capacity (l): No Tank
Voltage: 415V~50hZ

15kW Cooling Capacity: High-powered air-conditioning system for cooling a range of commercial and industrial spaces.

Split Air Conditioning System: This three phase air conditioning system consists of the main unit, which sits within the space, and a smaller heat rejector unit, which sits outside and dispels warm air.

Condensate Pump: Automatically removes water and pumps it away, which allows the unit to run continuously.

Built-in Digital Thermostat: Switches the unit on or off according to the desired environmental settings.

Sturdy Steel Frame: Made of sturdy galvanized steel, the Avalanche is painted with epoxy powder to ensure high resistance to atmospheric agents and aggressive environments. The panels are removable to allow quick inspection and maintenance of internal parts.

Hot Gas Defrost: Enables the unit to be used in environments with temperature up to 10°C and helps accelerate the defrosting of any ice that forms on the evaporator.

Washable Air Filter: Supplied as standard, the polyurethane air filter is washable and easily replaced.

Microprocessor: Controls the defrosting cycles, compressor timer, temperature and alarm. Plus, the unit is equipped with step sequence control.

Castors: Mounted on a set of robust wheels, these air con units can be moved around different areas easily and used wherever they are needed.
