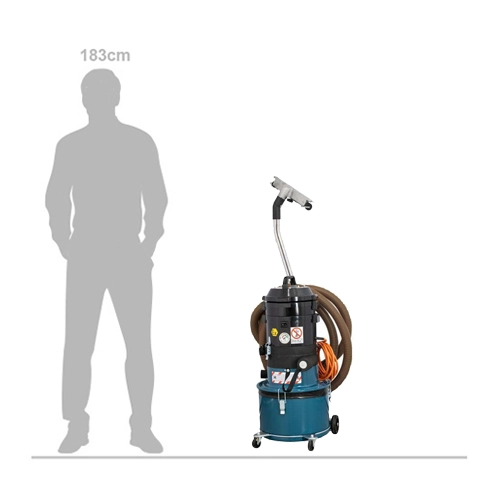

Dustcontrol DC1800 H EX ATEX Zone 22 Rated Dust Extractor

ATEX Zone 22 Rated Dust Extraction

The Dustcontrol DC1800 H EX is designed for source extraction and general cleaning in environments requiring Zone 22 compliant equipment. Its lightweight construction supports frequent movement between work areas, while the steel container and earth-bonded components provide controlled dust handling and discharge paths for static. The brushless motor enables spark-free operation for use with airborne combustible dusts.

Filtration System

The unit includes a polyester fine filter with 99.9% separation efficiency (EN 60335-2-69, Class M) and a HEPA H13 filter with 0.85 m² surface area. Combined, the filtration system provides 99.995% machine separation efficiency in accordance with EN 60335-2-69 Appendix A-A. This supports applications involving airborne particulates generated from cutting, grinding and cleaning operations.

Performance and Construction

With a maximum airflow of 200 m³/h and 27 kPa negative pressure, the extractor delivers stable suction for portable tool extraction. The steel container has a 20-litre capacity and is fitted for controlled dust collection. The motor housing meets IP54 requirements for equipment intended for non-conductive dust environments. Operating noise is rated at 70 dB(A).

Supplied Equipment

The DC1800 H EX is supplied with a 5 m Ø38 mm ATEX hose, floor nozzle, Ø38 mm suction pipe, polyester fine filter and HEPA H13 filter.

Buy from NHS for compliant dust extraction solutions engineered for Zone 22 environments.

Dimensions (HxWxD): 840 x 400 x 400 mm
Weight: 16.5 kg
Inlet Diameter: 50 mm
Hose Diameter: 38 mm
Hose Length: Container Capacity: 20 litres
Max Airflow (115V): 200 m³/h
Max Airflow (230V): 200 m³/h
Negative Pressure (max): 27 kPa
Power Input (115V): 1500 W
Power Input (230V): 1500 W
Fine Filter Area: 1.5 m²
Fine Filter Separation (Class M): 99.9%
HEPA Filter Area: 0.85 m²
HEPA Classification: H13
Machine Separation Efficiency (Class H): 99.995%
Max Sound Level: 70 dB(A)
Accessories Included: 5 m ATEX hose, floor nozzle, Ø38 mm suction pipe, polyester fine filter, HEPA H13 filter
