Arcotherm Phoen 110 Indirect Oil Fired Space Heater - 230v/110v 106kW

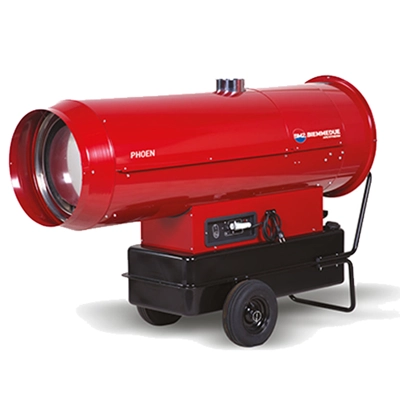

Arcotherm Phoen 110 Indirect Oil Fired Space Heater

Designed for industrial and commercial heating applications

The Arcotherm Phoen 110 is a large indirect diesel space heater, designed for heating large spaces such as halls, warehouses, marquees, events and more. As the Phoen 110 is an indirect fired diesel heater, it allows only clean, fume-free warm air into the space that you need to heat. Therefore these Arcotherm heaters are safe to use for heating larger enclosed environments with little ventilation.

The Phoen 110 diesel heater can be wheeled into position outside the space that you need to heat and the heat is ducted into the space from the heater. Meanwhile, any fumes produced during the diesel combustion process are expelled outside via the flue exhaust.

Arcotherm Phoen 110 space heaters have become very popular in the events and marquee hire industries, for heating large halls and marquees as well as other large spaces for parties and events.

High performance heating

A robust and reliable indirect diesel heater

The Arcotherm Phoen 110 indirect diesel heater has a 135 litre fuel tank, a heating capacity of 106kw and an airflow rate of 5300m³ / hr. With this fantastic heating performance and its high quality components, the Phoen 110 heater provides a powerful, high-performance heating solution for large indoor spaces.

Arcotherm Phoen 110 heaters can be used with up to 50m of ducting, to duct the warm air into the space, and provide heat to specific areas further away from the heater. You can also fit a 2-way splitter to these space heaters, which allows you to connect two sections of ducting to the one heater - so you can heat two separate areas at once!

Expertly designed

Arcotherm – a name you can trust.

Arcotherm is a name that you can rely on. Arcotherm have an excellent reputation for producing extremely high quality, reliable space heaters for industrial and commercial heating applications.

The Phoen 110 diesel space heater is no exception to this. With its AISI 430 stainless steel combustion chamber with four smoke revolutions, electronic flame control, safety thermostat and electronic control panel, you can be sure of the high performance and excellent reliability of the Phoen 110 indirect space heater.

This space heater is mounted on a set of strong wheels with a handle bar, which allows it to be moved around the area you are heating and placed into position easily. The Phoen 110 can also be connected to a thermostat, and a fan only option can be engaged to provide ambient air when required.

We now offer recirculation kits that you can add as an additonal extra. These kits allow you vent previously warmed air back into the combustion chamber by attaching an adapter and ducting to the air inlet. Recycling air allows your heater to work more efficiently, reducing fuel consumption and costs by up to 60%.

Rated Heat Power 2nd Stage Hs kW: 110.02
Hs [kcal/h - BTU/h]: 94,616 - 378,465
Rated Heat Power 1st Stage Hs kW: 80
Hs [kcal/h - BTU/h]: 68,804 - 275,214
Output Heat Power 2nd Stage Hs kW: 99.02
Hs [kcal/h - BTU/h]: 85,155 - 340,619
Output Heat Power 1st Stage Hs kW: 71.2
Hs [kcal/h - BTU/h]: 61,235 - 244,941
Heat Efficiency %: 90
Air Flow m3/h: 5,300
Temperature Rise 1°- 2° Stage at 20°C °C: 60 - 75
Fuel Consumption 1°- 2° Stage kg/h: 6.33 - 9.278
Tank Capacity L: 135
Power Consumption 230e W: 1,820
Electrical Power V - ph - Hz: 230 - 1 - 50
Ø Flue mm: 150
Ø Outlet Hose 1 - 2 Way mm: 500 - 400
Ø Flue mm: 150

100% Clean Hot Air: The heater blows out 100% clean, fume-free warm air from its warm air outlet.

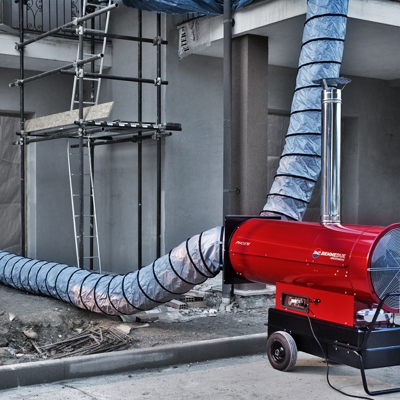

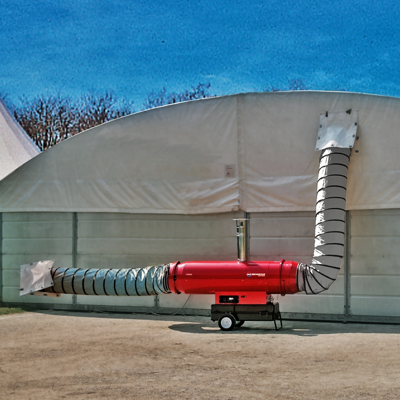

Ducting Connection: Up to 50m of ducting can be attached to this heater, in order to direct the clean warm air into the space that you need to heat. This makes it ideal for heating enclosed areas safely, such as marquees and tents, workshops, warehouses, areas on construction sites and much more.

Flue Gas Exhaust: Combustion by-products are exhausted out of the top of the heater. Sections of flue pipe are available separately, allowing you to safely vent exhaust fumes away from the space.

Tough & Robust: Built to perform in challenging areas, including construction sites, workshops, warehouses, agriculture, events and more.

High Quality Features: Robust hydrocarbon resistant polythene fuel tank, AISI 430 stainless steel combustion chamber, electronic flame control and electronic control panel, help to ensure maximum safety and reliable performance.

Overheat Thermostat: Shuts down the heater automatically if it overheats, to prevent accidents.

240v or Dual Voltage Power Supply: This heater is available in 240v only or dual voltage (240v/110v). The dual voltage model allows you to select the appropriate power supply for the space that you need to heat.

Portable Design: Large wheels and a handle make the heater very portable. It is easy to transport, position and re-position when required on site.

Thermostat Connectivity: An optional thermostat can be connected to this heater, allowing you to set a required temperature within the space. The thermostat will switch the heater on and off as required in order to maintain the set temperature. This saves fuel and adds extra convenience.

Fan Only Switch: Allows the fan to operate without heat, in order to provide ventilation when required.

Air Inlet Kit Available: We now offer recirculation kits. The kits allow you vent previously warmed air back into the combustion chamber so your heater can work more efficiently, reducing fuel consumption and costs.
