Arcotherm Confort 70 Cabinet Heater (Package Deal)

Arcotherm Confort 70 Cabinet Heater Package Deal

Cost-effective heating solution

The Arcotherm Confort 70 Cabinet Heater (Package Deal) offers great savings for those wanting a cabinet heater to warm commercial and industrial spaces such as showrooms, workshops, garages, warehouses and more. Designed to also be suitable for factories, halls, offices, car storage and retail outlets, this diesel cabinet heater package is ideal for areas with restricted space or where a discrete heater is a must.

Cabinet heaters are designed to maintain a minimum temperature inside an enclosure. These devices can also be used to heat electronic equipment that cannot be exposed to extreme temperature differences. They may also be used in residential homes to generate temporary heat or in construction sites that do not have access to a central air system.

Each package contains the Arcotherm Confort 70 and Flue Kit, which helps exhaust the fumes produced during combustion out of the space. Suitable for heating medium sized areas, the Arcotherm Confort 70 Cabinet Heater (Package Deal) will help keep the space warm and comfortable throughout cold winter months with minimum fuss.

Manufactured by Arcotherm, these cabinet heaters are tough, robust and reliable. Arcotherm is a specialist in portable space heaters for industrial applications. Their range includes gas fired portable space heaters, direct oil-fired heaters, indirect oil-fired heaters and oil-fired cabinet heaters.

Arcotherm Confort 70 Cabinet Heater

Reliable and effective heating performance

The Arcotherm Confort 70 is a tough, robust and reliable cabinet heater with a range of features and components that provides top class heating performance. It is an extremely efficient 66kW space heater that can be installed easily by any tradesperson. It simply needs a hole to be created in a wall for exhaust fumes to be flued outside and then plugged into a standard 230v plug socket.

Boasting a double-skinned body for thermo-acoustic insulation and safe low surface temperature, the Confort 70 also features a robust stainless-steel combustion chamber that is pre-heated and post-ventilated for maximum efficiency as well as reliability.

This Arcotherm cabinet heater boasts an integrated 110 litre fuel tank, electronic flame control, built-in thermostat and a centrifugal fan to send the warm air out into the space. The hot air produced by these cabinet heaters is clean, as the exhaust fumes are removed from the premises via an exhaust pipe.

Safety features include a manual reset overheat thermostat, which shuts the unit off instantly if there is an issue. Designed to comply with the latest regulations, the Confort 70 is part of a new generation of ErP compliant units from Arcotherm.

The Energy related Product Directive 2018 implemented a series of measures requiring all diesel and gas powered heaters to achieve a seasonal efficiency of more than 72%.
It also requires that NOx emissions must not exceed 180 mg/kWh (gross) for oil fired units. Thankfully, the Arcotherm Confort 70 complies with all the latest regulations.

Flue Kit Included

Complete package for clean, fume-free air & effective heating

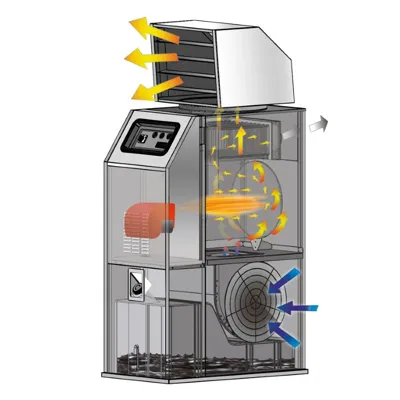

Arcotherm Confort 70 Cabinet Heaters are extremely safe, reliable and fume-free space heaters, so they can be used in enclosed spaces without any risk to the people inside. The hot air produced and circulated by these cabinet heaters is clean and fume free, as the exhaust fumes are removed from the heated premises via an exhaust pipe.

Included in this package deal is the correct Arcotherm Flue Kit for the Arcotherm Confort 70, which comprises of two 1mtr flue, rain cap and 90-degree elbow. NOTE: The heater comes with the anti-wind device and horizontal crossing tube.

Dimensions (Width x Depth x Height): 600mm x 1045mm x 1530mm
Weight: 184 kg
Rated heat power: 70.78 kW / 60,869 - 243,476 kcal/h - BTU/h
Output heat power: 65.96 kW / 56,730 - 226,919 kcal/h - BTU/h
Heat efficiency: 93.2%
Air flow: 6000 m3/h
Available static press.: 150 - 15 Pa - mm H2O
Fuel consumption: 5.6 kg/h
Tank capacity: 110 litres
Run time: 16.9 hours
Electrical power: 230-1-50 V-ph-Hz
Power consumption 230V: 1350 watts
Temperature rise: 40°C
Flue ø: 150mm

Great Value Package Deal: Arcotherm Confort 70 cabinet heater and Flue Kit at a cheaper price than buying them individually.

100% Clean Warm Air: Circulates only clean, fume-free warm air, as the fumes produced during combustion are held within the heat exchanger and exhausted outside.

Flue Kit Included: 150mm diameter flue allows exhaust fumes to be vented safely outside.

Plug & Play Design: Can be installed easily by any tradesperson. It simply needs a hole to be created in a wall for exhaust fumes to be flued outside, and then plugged into a standard 230v plug socket.

High Quality Features: The double-skinned body provides thermo-acoustic insulation and safe low surface temperature, and a robust stainless-steel combustion chamber pre-heated and post-ventilated for maximum efficiency and reliability. Electronic flame control and an efficient centrifugal fan ensure reliable and effective performance.

Standard & Swivel Head Outlets Available: The standard head features an outlet with adjustable louvres around all four sides, for equal air distribution. Louvres can be closed in order to direct warm air where you want it. The swivel head version features a 360 degree adjustable head, which can be rotated in order to direct warm air where it is needed.

Integrated Thermostat: Allows you to set a required temperature within the space. The heater will automatically switch itself on and off as required to maintain the required temperature, saving fuel, energy and money.

Internal 110 Litre Fuel Tank: Provides plenty of fuel to keep the heater running and can be topped up easily when needed.

230v Power Supply: Can be plugged easily into any standard 230v pocket socket, for convenience and ease of installation.

Fan Only Switch: Allows the fan to be used alone without heat, in orde to provide ventilation during summer months.

Overheat Thermostat: Shuts the heater down automatically if it starts to overheat, preventing an accident.
