Olimpia Splendid Unico Pro Inverter 30 HP EVA Air Conditioner with Heat Pump 230v 2.6kW

Olimpia Splendid Unico Pro Inverter 30 HP EVA Air Conditioner with Heat Pump

Powerful & Versatile All-in-One Air Con Unit

The Unico Pro 30HP R32 is one of the most powerful, thinnest and quietest versatile air conditioners all in one single indoor unit. Developed with innovative Pro Power technology, this air conditioner boasts up to 2.6kW of cooling power, without the need for an outdoor condenser. Plus, equipped with an in-built heat pump, the Unico Pro can deliver up to 1.8kW of heat, offering complete climate control all year-round. You can keep cool in summer and warm in winter with the Unico Pro!

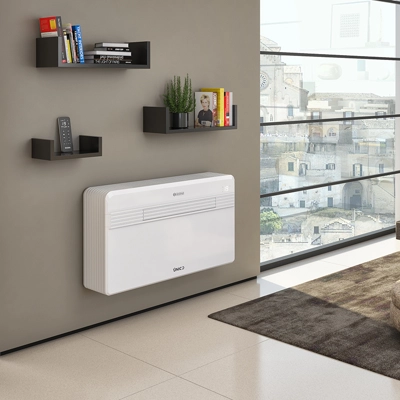

Made in Italy, the modern design is the result of a collaboration between Studio Matteo Thun & Antonio Rodriguez, which ensures this luxury air con unit will blend in beautifully with any interior décor. Requiring no external condensor unit, this easy to install, slim all-in-one air conditioning system can be installed high up or low on a wall inside your home, office, bar or restaraunt in just a few minutes.

The sleek, modern unit features a backlit LCD temperature display and touchscreen panel with simple controls. Alternatively, the Unico Pro can be operated by the full-function remote control or smartphone app for maximum comfort and convenience.

Complete Climate Control System

Beautifully Modern, Silent & Energy-Efficient

This versatile air conditioning system includes multiple operating modes: energy-saving, dehumidification and fan-only modes. Sleep mode sets the compressor and fans to operate silently (-10dB(A)) which is perfect for nightime use in bedrooms, or in offices where a calm and tranquil environment is favoured.

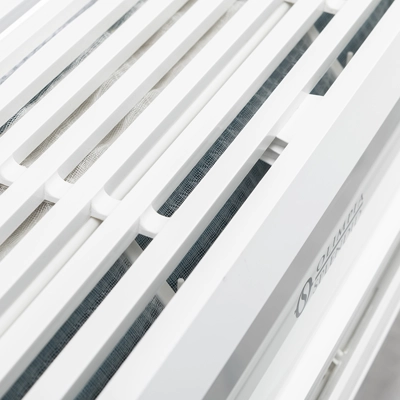

The Unico Pro is designed with a multi-filter system, equipped with an electrostatic dust filter, a large flap for the homogeneous diffusion of air, as well as an active carbon filter that is effective against unpleasant odours. Boasting a new generation of inverter motor with wide frequency, the Unico Pro consists of premium DC inverter fans and an electronic management for the expansion valve.

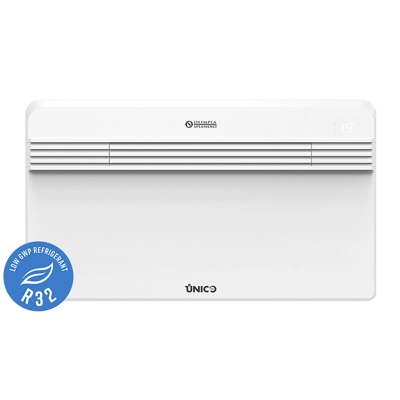

As planet-friendly as it is powerful, the ecological Unico Pro 30HP uses the R32 refrigerant, which has low GWP (Global Warming Potential) and reduced greenhouse effect by almost 70% (compared to R410A).

Cooling power (min/max) kW: 1.9/3.4
Heating power (min/max) kW: 1.5/3.2
Nominal cooling capacity (1) kW: 2.6
Nominal heating capacity (1) kW: 1.8
Nominal power consumption for cooling (1) kW: 0.8
Nominal absorption for cooling (1) A: 4
Nominal power consumption for heating (1) kW: 0.5
Nominal absorption for heating (1) A: 3.6
Nominal energy efficiency index (1): 3.1
Nominal efficiency coefficient (1): 3.4
Energy efficiency class in cooling (1): A+
Energy efficiency class in heating (1): A
Energy consumption in “thermostat off” mode W: 22
Energy consumption in “standby” mode (EN 62301) W: 0.5
Energy consumption for double pipe appliances (1) cooling function kWh/h: 0.8
Energy consumption for double pipe appliances (1) heating function kWh/h: 0.5
Silent mode cooling capacity kW: 1.9
Silent mode cooling capacity kW: 1.5
Supply voltage V-F-Hz: 230-1-50
Supply voltage (min/max) V: 198 / 264
Maximum power consumption in cooling mode kW: 0.5/1.5
Maximum absorption in cooling mode A: 3.1/7.5
Maximum power consumption in heating mode kW: 0.4/1.4
Maximum absorption in heating mode A: 2.5/6.8
Dehumidification capacity l/h: 1.3
Air flow rate in cooling environment (max/med/min) m³/h: 490/430/350
Air flow rate in heating environment (max/med/min) m³/h: 490/430/350
External air flow rate in cooling (max/min) m³/h: 600/120
External air flow rate in heating (max/min) m³/h: 600/120
Internal ventilation speed: 3
External ventilation speed: 6
Diameter wall holes** mm: 162/202
Electric resistance heating: -
Maximun remote control range ( distance / angle ) m / °: 8 / ±80°
Dimensions (WxHxD) (without packaging) mm: 903 x 520 x 215
Dimensions (WxHxD) (with packaging) mm: 980 x 610 x 350
Weight (without packaging) kg: 39
Weight (with packaging) kg: 34
Internal sound pressure (min/max) (2) dB(A): 32-41
Internal sound power level (EN 12102) LWA dB(A): 57
Degree of protection provided by covers: IP 20
Refrigerant gas* Type: R32
Global warming potential GWP: 675
Refrigerant gas charge kg: 0.46
Maximum operating pressure MPa: 4.28
Power cable (N° pole x section mm²): 3 x 1.5

(1) Test conditions: the data refer to the EN14511 standard - HEATING MODE: Temperature: outdoor environment DB 7°C / WB 6°C; indoor environment DB 20°C / WB 15°C -
COOLING MODE: outdoor ambient temperature DB 35°C / WB 24°C; indoor environment DB 27°C / WB 19°C
(2): Declaration of test data in a semi-anechoic chamber at a distance of 2m, minimum pressure in ventilation only.
* Hermetically sealed equipment containing fluorinated gas with GWP equivalent 2088.
** Machine supplied with 202 mm wall opening grilles. If necessary, to replace an old Unico, the machine can also be installed with holes of 162 mm in diameter.

Complete Climate Control: The Unico Pro features cooling and heating powers, dehumidification and air conditioning functions, offering a fantastic all-in-one climate control solution.

Multi-Filter Design: Equipped with an electrostatic dust filter, a large flap for the homogeneous diffusion of air, as well as an active carbon filter that is effective against unpleasant odours.

Silent System: Sets the machine to minimum noise. The compressor and fans are set to reduce the sound power down to -10dB(A).

Various Operation Modes: The Unico Pro features an energy-saving mode, which automatically optimises the performance of the machine, plus fan-only and dehumidification-only modes.

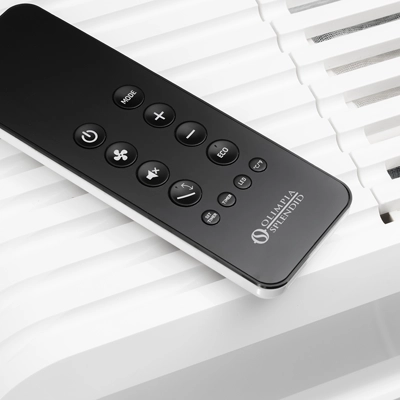

Easy-To-Use Controls: Featuring a backlit LCD temperature display and panel with simple touch controls. Plus, a multi-function remote control with a 24h timer is supplied – So you can control the climate from the comfort of your seat.

Low GWP (Global Warming Potential) Gas: The Unico Pro 30HP uses the R32 refrigerant, which has low GWP and reduced greenhouse effect by almost 70% (compared to R410A).

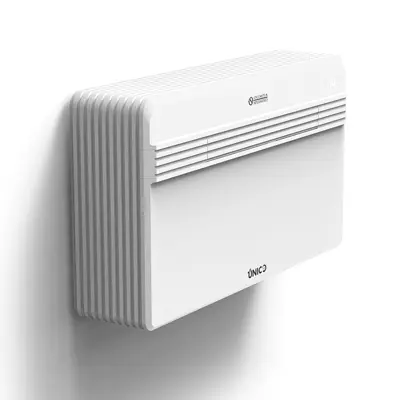

No Outdoor Unit Required: The slim all-in-one indoor unit can be quickly and easily installed high up or low on the wall using internal fixing points.
