Trotec TTV 4500 High-Performance Fan 5,300 [m³/h]

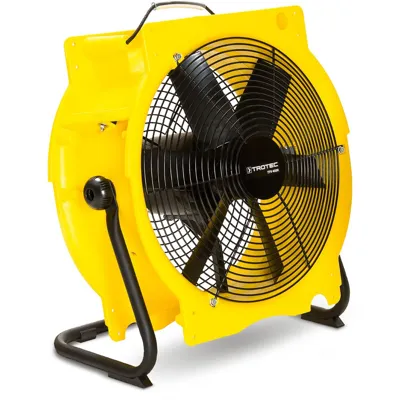

Trotec TTV 4500 High-Performance Fan

A Tough & Powerful Air-Filtration System

The TTV 4500 is a versatile industrial fan offering a range of functions from ventilation, air circulation, dust collection, and temperature-regulated air transportation. These fans are highly effective at removing dust particles from large open areas making the environment a cleaner and ultimately safer place to work. Thanks to the TTV 4500’s robust design each comes resistant to a range of environmental issues. So, operate in harsh surroundings and transport your unit seamlessly with no worry about damaging it. These units are also particularly useful for large-scale drying operations. So if you working on a wet site, have had issues with a flood, or perhaps a leaky set of pipes you can work assured that this fan can dry the area quickly. The fan also works particularly well in conjunction with other drying fans and dehumidifiers.

Trotec offers an extensive range of accessories (sold separately) that are compatible with a variety of their products. The TTV 4500 has been designed to integrate with versatility. The unit one adaptor design means that the TTV hose adaptor is Purchased separately) can be fitted to either end of the unit for a customizable source of air extraction. These units are also compact and can easily be used in rooms of varying dimensions. Further, these fans have been designed to be stackable. This means that two or three TTV 4500s could be used in conjunction whilst taking up minimal space.

TECHNICAL DATA
General information
Article number: 1.510.000.010
Air flow rate, Air volume Level Max. - Freely blowing [m³/h]: 5,300
Air current: Blowing out/ Sucking in
Fan: Axial With 3 Stages
Air discharge speed [m/s]: 11
Air discharge speed [km/h]: 39.6
Discharge distance, outside [m]: 15, Inside [m]: 50
Air pressure, Level Max. [Pa]: 80
Transport medium temperature, max [°C]: 45
Mains connection: 230 V/50 Hz
Nominal current consumption [A]: 1.1
Power input [kW]: 0.25
Recommended preliminary fuse [A]: 10
Connection plug: CEE 7/7
Cable length [m]: 3
Safety feature, IP type of protection: 55
Sound values, Distance 3 m [dB(A)]: 53
Hose connection, Diameter [mm]: 450
Length (packaging excluded) [mm]: 358
Width (packaging excluded) [mm]: 515
Height (packaging excluded) [mm]: 520
Weight, (packaging excluded) [kg]: 14.5

High-Performance Axial Fan: The TTV 4500 is an especially versatile solution to ventilation, air circulation, dust collection, and the transportation of cold or warm air even over longer hose distances. This powerful fan can accomplish the most diverse tasks normally only possible with multiple fans working together. Because this high-performance unit enables a powerful, large-volume air circulation resulting in quicker evaporation. The higher the flow rate on the material surface, the quicker the drying process. Depending on the construction design, you can halve drying time just by combining a dryer and TTV 4500

One Adapter: These units have been designed to be compatible with a TTV hose adaptor (Sold Separately) which can be fitted to either side of the fan. This provides the added functionality of more direct removal of dust particles around any given area.

Dust Protection: The suction function of these fans allows for the removal of large quantities of dust from workspaces. This dust is often a cause of long-term respiratory issues the likelihood of which is lessened thanks to this functionality.

Compact & Practical: The compact dimensions (52 x 51.5 x 35.8 cm) allow flexible use in different locations. Two screw handles are attached to both sides of the stand frame, with which the discharge direction can be variably fixed. All TTV models can be stacked in a stable manner for transport and storage.

Extremely Robust: The TTV 4500 has also been designed with a long operational life. The machine meets the toughest practical requirements in harsh surroundings, even from the stresses and strains resulting from continuous operation in frequently changing locations.
