Trotec TTV 3000 Conveying Fan 3,000m³/h

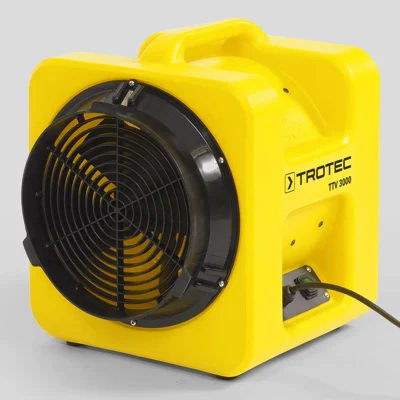

Trotec TTV 3000 Conveying Fan

An Excellent Industrial Air Mover

The Trotec TTV 3000 is an excellent addition to worksites everywhere. A real whirlwind on every construction site this unit offers powerful performance in a compact package. Lightweight these robust devices come with a fitted carry handle and shock-protected switch. Each also comes with a stackable design. So, transport these air mover systems anywhere seamlessly and safety then stack to conserve space during storage.

This high-performance fan can transport fresh air over long distances. The power produced by this unit allows airflow to be moved into upper storeys or shafts and exhaust polluted air over equally long distances. These units are perfectly suited for use in a variety of areas and offer a steady stream of powerful air dispersal whenever you need it.

TECHNICAL DATA
General information
Article number: 1.510.000.014
Air flow rate
Level Max. [m³/h]: 3,000
Air current
Blowing out
Sucking in
Fan
Radial
axial
stages 1
Air discharge velocity
Air discharge speed [m/s]: 13.7
Air discharge speed [km/h]: 48
Discharge distance
outside [m]: 10
Inside [m]: 30
Air pressure
Level Max. [Pa]: 360
Transport medium temperature
max. [°C]: 40
Electrical values
Mains connection: 230 V/50 Hz
Nominal current consumption [A]: 3.2
Power input [kW]: 0.73
Recommended preliminary fuse [A]: 10
Electric connection
Connection plug: CEE 7/7
Cable length [m]: 5
Safety feature
Overheating protection: Available
IP type of protection: 44
Sound values
Distance 3 m [dB(A)]: 77
Hose connection
Diameter [mm]: 300
Max. hose length [m]: 38
Dimensions
Length (packaging excluded) [mm]: 470
Width (packaging excluded) [mm]: 390
Height (packaging excluded) [mm]: 460
Weight
(packaging excluded) [kg]: 14.5

Robust Housing: Made from the sturdiest polyethylene these units are housed in a hard shell keeping them safe in hazardous environments.

Stackable Design: These fans feature a stackable design. Stack multiple when operating or storing to conserve space.

Double Barrel Connection: These fans have been designed to ensure seamless accessibility with optional accessories (sold separately). Attach accessories to either end of the device.

Seamlessly Transportable: The TTV 3000 come with a built-in carrying handle and shock-protected switch making it easy to transport and safe to do so.
