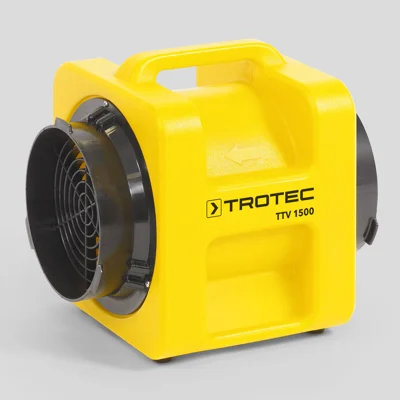

Trotec TTV 1500 Conveying Fan 1,050m³/h

Trotec TTV 1500 Conveying Fan

An Outstands Source of Air Dispersal

The Trotec TTV 1500 is an outstanding air dispersal unit perfect for any environment. A real powerhouse of production on every job this device provides high performance in slimline dimensions. The sleek units come with sturdy construction and are fitted with a carrying handle and a shock-protected switch. Each also offers a stackable design. Bring this air mover anywhere easily and safely stack using minimal space during storage.

These high-quality air movers can disperse air over large areas. The power produced by these devices allows airflow to be moved into upper storeys or shafts and exhaust polluted air over equally long distances. These fans are well suited for use in a range of areas and offer a steady stream of powerful air dispersal whenever you need it.

TECHNICAL DATA
General information
Article number: 1.510.000.006
Air flow rate
Level Max. [m³/h]: 1,050
Air current
Blowing out
Sucking in
Fan
Radial
axial
stages 1
Air discharge velocity
Air discharge speed [m/s]: 5
Air discharge speed [km/h]: 19
Discharge distance
outside [m]: 3
Inside [m]: 9
Air pressure
Level Max. [Pa]: 225
Transport medium temperature
max. [°C]: 40
Electrical values
Mains connection: 230 V/50 Hz
Nominal current consumption [A]: 1.6
Power input [kW]: 0.17
Recommended preliminary fuse [A]: 10
Electric connection
Connection plug: CEE 7/7
Cable length [m]: 2.8
Safety feature
Overheating protection: Available
IP type of protection: 44
Sound values
Distance 3 m [dB(A)]: 71
Hose connection
Diameter [mm]: 200
Max. hose length [m]: 15
Dimensions
Length (packaging excluded) [mm]: 348
Width (packaging excluded) [mm]: 285
Height (packaging excluded) [mm]: 324
Weight
(packaging excluded) [kg]: 8
(packaging included) [kg]: 9

Robust Housing: Build from tough polyethylene these devices are housed in a hard shell keeping them safe in hazardous areas.

Stackable Design: These air movers have been made with a stackable design. Stack several when operating or storing to save space.

Double Barrel Connection: These units have been built to ensure easy accessibility with optional accessories (sold separately). Attach accessories to either end of the unit.

Seamlessly Transportable: The TTV 3000 come with an attached carrying handle and shock-protected switch making it seamless to transport and safe to do so.
