Trotec TFV 30 Turbo Fan 2,200m³/h

Trotec TFV 30 Turbo Fan

Compact & Efficient

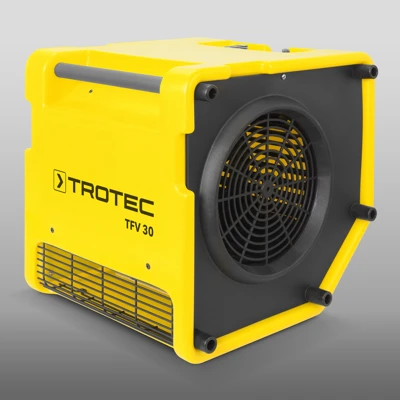

The Trotec TFV 30 is a compact centrifugal air mover that offers a unique design. The distinctive cuboid design unites a great number of practical benefits in one user-friendly radial fan. Each is equipped with a double-flow radial fan with an extra-large shaft and three-stage regulation. These units have been built with a metal enclosure specifically designed to keep dust free of the inner mechanics of the machine.

These units have been designed for transportation and storage. Each comes with an attached handlebar and integrated cable holder for ease of movement. The fans can also be stacked to ensure minimal use of space is needed to store them. These devices can also be stored and operated both horizontally and vertically at forty-five and ninety degrees. These fans are a safe, robust, and effective solution to drying large areas. Each helps combat water damage quickly.

TECHNICAL DATA
General information
Article number: 1.510.003.041
Air flow rate
Air volume Level Max. - Freely blowing [m³/h]: 2,200
Air current
Blowing out
Sucking in
Fan
stages 3
Radial
axial
Air discharge velocity
Air discharge speed [m/s]: 14.5
Air discharge speed [km/h]: 52
Air pressure
Level Max. [Pa]: 425
Transport medium temperature
max. [°C]: 60
Electrical values
Mains connection: 230 V/50 Hz
Nominal current consumption [A]: 3.8
Power input [kW]: 0.85
Recommended preliminary fuse [A]: 10
Electric connection
Connection plug: CEE 7/7
Cable length [m]: 5
Safety feature
IP type of protection: 22
Sound values
Level 1 - Distance 3 m [dB(A)]: 73.5
Level 2 - Distance 3 m [dB(A)]: 80.8
Level 3 - Distance 3 m [dB(A)]: 86.2
Operating hours counter
integrated
Dimensions
Length (packaging excluded) [mm]: 442
Width (packaging excluded) [mm]: 426
Height (packaging excluded) [mm]: 429
Weight
(packaging excluded) [kg]: 19

Light Construction: The unit is also lightweight and easy to transport. The integrated handlebar and cable holder make transportation of the unit particularly simple and safe.

Robust Design: A robust and tight metal enclosure reliably protects the inside of the motor against the infiltration of dust or dirt. The control panel has further been recessed for protection.

Compact: Thanks to the bump stops attached to the sides the TFV 30 can be stacked to save space.

Double-Flow Radial Fan: Located behind the air outlet you’ll find a double-flow radial fan with an extra-large shaft that ensures high compression.
