Trotec TFV 30 S Turbo Fan 2,250m³/h

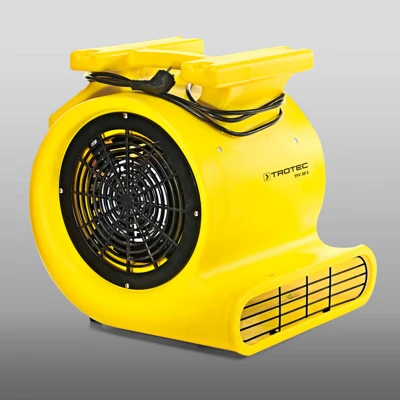

Trotec TFV 30 S Turbo Fan

An Excellent Air Mover

These compact TFV 30 S air movers have been made to provide a robust and energy-efficient source of air regulation. Compact, these units come with a stackable design which means multiple may be stored or installed anywhere whilst taking up minimal space. The specially designed air exhaust duct ensures the turbofan produces a wide air current near the ground. These devices offer quick drying times and are particularly effective at drying carpets without damaging their integrity.

With three variable power stages, you can set your unit to the best possible setting for your needs. And with-it indestructible polyethylene housing you can rest assured that these units can be of use in even the harshest environments without any risk of damage. These fans can also be installed to operate at a 0°, 45°, or 90° angle.

TECHNICAL DATA
General information
Article number: 1.510.003.031
Air flow rate
Level Max. [m³/h]: 2,250
Air current
Blowing out
Sucking in
Fan
stages 3
Radial
axial
Air discharge velocity
Air discharge speed [m/s]: 10
Air discharge speed [km/h]: 36
Air pressure
Level Max. [Pa]: 525
Transport medium temperature
max. [°C]: 60
Electrical values
Mains connection: 230 V/50 Hz
Nominal current consumption [A]: 5.2
Power input [kW]: 1.05
Recommended preliminary fuse [A]: 10
Electric connection
Connection plug: CEE 7/7
Cable length [m]: 5
Safety feature
IP type of protection: 22
Sound values
Level 1 - Distance 3 m [dB(A)]: 73.5
Level 2 - Distance 3 m [dB(A)]: 80.8
Level 3 - Distance 3 m [dB(A)]: 86.2
Operating hours counter
Operating hours counter
Dimensions
Length (packaging excluded) [mm]: 480
Width (packaging excluded) [mm]: 455
Height (packaging excluded) [mm]: 475
Weight
(packaging excluded) [kg]: 16.5

Robust Design: The housing consists of indestructible polyethylene and is therefore equally light and robust.

Three Variable Power Stages: The air volume can always be optimally adjusted to the different requirements.

Powerful Fan: The turbo fan produces a wide air current near the ground above wet flooring or screeds. The room air is thus optimally distributed which perceptibly reduces drying time.

Compact Construction: These compact units come with a stackable construction meaning they can be stored seamlessly whilst taking up minimal space.

Energy-Saving: These units have been designed to offer a powerful performance whilst consuming little energy.

Versatile Design: Whether at 0°, 45°, or 90° – both high-performance fans can be used in three different installation angles and ensure a secure footing in either position.
