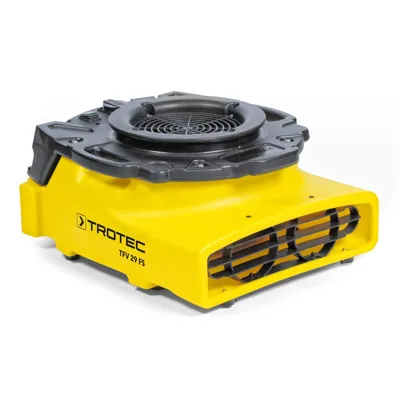

Trotec TFV 29 FS Radial Fan 1,150m³/h

Trotec TFV 29 FS Radial Fan

Am Amazing Compact Air Mover

The Trotec TFV 29 FS is a versatile radial fan that comes ready to dry large areas quickly These units come with a lightweight, compact, and stackable design. Stack up to five for ease of storage. Each also comes with carrying handles on both sides as well as the integrated cable holder to ensure seamless and safe transportation of the device.

With its quality construction, this fan features the ability to install and operate in four different positions. The standing bar fitted at the bottom can be folded out for tilting allowing for the ventilation and drying of walls or entire stairwells. When angled closer to the ground discharged air is distributed at high speed which leads to an accelerated surface drying. Upright positioning helps dry ceiling spaces. Operating the unit on the edge with a lateral air outlet is perfect for confined spaces.

TECHNICAL DATA
General information
Article number: 1.510.003.025
Air flow rate
Level Max. [m³/h]: 1,150
Air current
Blowing out
Sucking in
Fan
stages 1
Radial
axial
Air discharge velocity
Air discharge speed [m/s]: 7
Air pressure
Level Max. [Pa]: 290
Transport medium temperature
max. [°C]: 60
Electrical values
Mains connection: 230 V/50 Hz
Nominal current consumption [A]: 0.74
Power input [kW]: 0.17
Electric connection
Connection plug: CEE 7/7
Cable length [m]: 5
Safety feature
IP type of protection: IP44
Sound values
Level 1 - Distance 3 m [dB(A)]: 64
Operating hours counter
integrated
Dimensions
Length (packaging excluded) [mm]: 520
Width (packaging excluded) [mm]: 450
Height (packaging excluded) [mm]: 255
Weight
(packaging excluded) [kg]: 11

Four Drying Positions: Operated at a Tilted angle, Close to the ground, Upright with air discharge at the top or On the edge with a lateral air outlet.

Compact Design: Extremely light, stackable, and compact these units take up little space when stored or operating.

Splash-Proof: These units have been built resistant against water damage to the interior mechanics of the machine.

Easily To Transport: Coming with carrying handles on both sides as well as the integrated cable holder the device can be transported safely without trip hazards.
