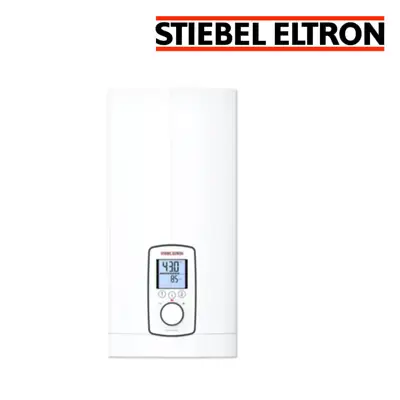

Stiebel Eltron DHE Comfort Instantaneous Water Heaters 18kW – 27kW

Stiebel Eltron DHE Comfort Instantaneous Water Heaters

A Compact Source Of Quick Water Temperature Regulation

Stiebel Eltron DHE collection is a compact comfort water heater designed to produce hot water at a specified temperature quickly. These devices will provide a steady stream of hot water regardless of how many other outlets are in use. The fully electronic output control with 4i technology ensures that operation is easy and effortless providing quick and accurate results. These devices have been designed with safety in mind. Both can restrict temperatures by setting the installer to 55, 50, or 43 °C. The temperature can be further restricted using childproofing settings.

This unit can be installed in a variety of positions; the appliance cover and the programming unit can be turned to make installation easier. These devices are highly energy efficient thanks to their Eco mode and come with a consumption indicator allows you to see an accurate account of your energy usage. These units also come equipped with two memory buttons and a large, illuminated multifunction display.

Product Number: 204284
Rated voltage: 400 V
Rated voltage 1: 380 V
Rated voltage 2: 400 V
Rated voltage 3: 415 V
Rated output: 18/21/24 kW
Rated output 1: 16,2/19/21,7 kW
Rated output 2: 18/21/24 kW
Rated output 3: 19,4/22,6/25,8 kW
Rated current: 29/31/35 A
Rated current 1: 27,6/29,5/33,3 A
Rated current 2: 29/31/35 A
Rated current 3: 30,1/32,2/36,3 A
Fuse protection: 32/32/35 A
Fuse protection 1: 32/32/35 A
Fuse protection 2: 32/32/35 A
Fuse protection 3: 32/32/40 A
Frequency: 50/60 Hz
Frequency 1: 50/60 Hz
Frequency 2: 50/60 Hz
Frequency 3: 50/- Hz
Phases: 3/PE
IP rating: IP 25
Temperature setting: Off, 20-60 °C
Colour: white
Height: 466 mm
Width: 225 mm
Depth: 116 mm
Weight: 3.10 kg
Energy efficiency class: A
Product Number: 204285
Rated voltage: 400 V
Rated voltage 1: 380 V
Rated voltage 2: 400 V
Rated output: 27 kW
Rated output 1: 24,4 kW
Rated output 2: 27 kW
Rated current: 39 A
Rated current 1: 37,1 A
Rated current 2: 39 A
Fuse protection: 40 A
Fuse protection 1: 40 A
Fuse protection 2: 40 A
Frequency: 50/- Hz
Frequency 1: 50/- Hz
Frequency 2: 50/- Hz
Phases: 3/PE
IP rating: IP 25
Temperature setting: Off, 20-60 °C
Colour: white
Height: 466 mm
Width: 225 mm
Depth: 116 mm
Weight: 3.10 kg
Energy efficiency class: A

Maximum Energy Efficiency: Accurate temperature delivery is always thanks to fully electronic output control with 4i technology.

Temperature Can Be Permanently Restricted: By using the installer to 55, 50, or 43 °C; the temperature can be further restricted by the user (childproofing).

Greater Convenience: When installed under the sink, since the appliance cover and the programming unit can be turned the other way up.

Optimum Energy Efficiency: Achieved through selectable ECO mode.

Consumption Indicator: Presents a far more transparent account of costs incurred through the operation.

Quick Temperature Selection:  Through the use of two memory buttons.

Safe Operation: Thanks to an extensive range of convenience and safety functions.

Easy Operation: Via large, illuminated multifunction display.
