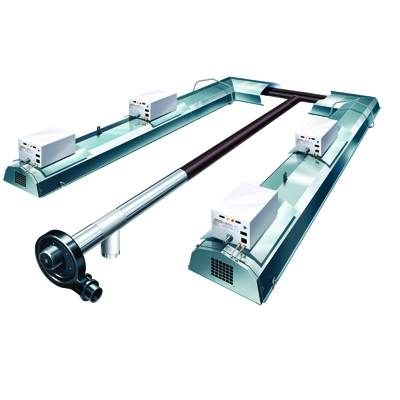

Reznor Nor-Ray-Vac Continuous Radiant Tube Heating System 12kW - 46kW

Reznor-Ray-Vac Continuous Radiant Tube Heater

Gas-fired, Uniform Coverage Heating System

Nor-Ray-Vac is a gas fired continuous radiant tube heating system. It has been purpose built to provide uniform heat coverage across target areas. The unit can also be used to target only the specific areas of a building as they are required.

This minimizes temperature loss. What this means is that temperatures can be maintained with minimal need for prolonged central heating use. Saving you both energy at as high as 92% efficiency and cost of running such units with savings of up to 60%.

The heating system is available in a range of six separate natural gas or propane burner models. From a heat input of 12kW, 18kW, 24kW, 32kW, 38kW and 46kW. It is further available in a variety of tube lengths ranging from 5.2 to 27m and further has tube temperatures range of 450 to 480°C.

This reliable and safety Radiant Tube Heater operates on a vacuum principle and utilises a zero governor within a dedicated gas valve ensuring optimum efficiency. Each unit operates to the latest European standard for multi-burner systems (EN 777).

Safety of operation is also maximized within these units. As well as the standard failsafe available the zero governor also mechanically prevents gas flow in the event of vacuum shut down. Each heaters end vent module burner provides flow of air at the start of each radiant branch. The end vent module burner is a unique feature to the Nor-Ray-Vac system and instils the principle of ‘safety of operation’ into the heart of the design of design.

The Nor-Ray-Vac system utilization of radiant heat. As radiant heat can be used to targeted effectively ensuring energy savings operation. Its built-in rapid response to operating temperature and burns fuel at the point of use has significant advantages in comparison with large heating plant.

NRV12LR:

Heat Input: 12kW, Heat Input: 12,
Gas Consumption: Natural Gas: 1.14 G20 Propane G31: 0.45,
Inlet Gas Pressure (mbar) Max: 50, Min: 17.5,
Radiant Tube Length: Max: 7.2 Min: 5.2,
Maximum Tube Temperature: 450c,
Max burners per branch: 5,
Electrical supply Current rating: 230 volts 1 phase 50Hz 0.05 amps max (inductive),
Below Tube: End vent/inline,
Without undershield: 1120/1250 With undershield: 760/850,
Above Tube: 250,
Standard Reflector: 600/770 Perimeter Reflector: 305/450,
Minimum mounting height: 3m,
Average weight: 10kg/m

NRV18LR:

Heat Input: 18kW,
Gas Consumption: Natural Gas: 1.14 Propane G31: 0.68
Inlet Gas Pressure (mbar) Max: 50, Min: 17.5,
Radiant Tube Length: Max: 10.2 Min: 7.4
Maximum Tube Temperature: 450c
Max burners per branch: 4
Electrical supply Current rating: 230 volts 1 phase 50Hz 0.05 amps max (inductive),
Below Tube: End vent/inline,
Without undershield: 1120/1250 With undershield: 760/850,
Standard Reflector: 600/770 Perimeter Reflector: 305/450,
Minimum mounting height: 3.6m
Above Tube: 250
Minimum mounting height: 3.6m,
Average weight: 10kg/m

NRV24LR

Heat Input: 24kW,
Gas Consumption: Natural Gas: 2.29 Propane G31: 0.90
Inlet Gas Pressure (mbar) Max: 50, Min: 17.5,
Radiant Tube Length: Max: 13.1 Min: 9.4
Maximum Tube Temperature: 450c
Max burners per branch: 3
Electrical supply Current rating: 230 volts 1 phase 50Hz 0.05 amps max (inductive)
Below Tube: End vent/inline,
Without undershield: 1120/1250 With undershield: 760/850,
Above Tube: 250
Standard Reflector: 600/770 Perimeter Reflector: 305/450,
Minimum mounting height: 4m,
Average weight: 10kg/m

NRV32LR

Heat Input: 32kW
Gas Consumption: Natural Gas: 3.05 Propane G31: 1.21
Inlet Gas Pressure (mbar) Max: 50, Min: 17.5,
Radiant Tube Length: Max: 18 Min: 14
Maximum Tube Temperature: 480c
Max burners per branch: 3
Electrical supply Current rating: 230 volts 1 phase 50Hz 0.05 amps max (inductive)
Below Tube: End vent/inline,
Without undershield: 1440/1700 With undershield: 760/850
Above Tube: 250
Standard Reflector: 700/850 Perimeter Reflector: 305/510
Minimum mounting height: 4.7m,
Average weight: 10kg/m

NRV38LR

Heat Input: 38kW,
Gas Consumption: Natural Gas: 3.62 Propane G31: 1.73
Inlet Gas Pressure (mbar) Max: 50, Min: 17.5,
Radiant Tube Length: Max: 23 Min: 18
Maximum Tube Temperature: 480c
Max burners per branch: 3
Electrical supply Current rating: 230 volts 1 phase 50Hz 0.05 amps max (inductive)
Below Tube: End vent/inline,
Without undershield: 1570/2100 With undershield: 785/1050
Above Tube: 250
Standard Reflector: 700/1000 Perimeter Reflector: 305/600
Minimum mounting height: 5.3m,
Average weight: 10kg/m

NRV46LR

Heat Input: 46kW,
Gas Consumption: Natural Gas: 4.38 Propane G31: 1.73
Inlet Gas Pressure (mbar) Max: 50, Min: 17.5,
Radiant Tube Length: Max: 13.1 Min: 9.4
Maximum Tube Temperature: 480c
Max burners per branch: 3
Electrical supply Current rating: 230 volts 1 phase 50Hz 0.05 amps max (inductive)
Below Tube: End vent/inline,
Without undershield: 1700/2100 With undershield: 850/1050
Above Tube: 250
Standard Reflector: 700/1000 Perimeter Reflector: 305/600
Minimum mounting height: 6m,
Average weight: 10kg/m

Heat Capacity Range: This system comes in a range of heat output from 12kW, 18kW, 24kW, 32kW, 38kW and 46kW.

Reduced Operating Cost: With ever rising energy costs this heating system maximizes heating efficiency at a reduce operating cost of up to 60% over conventional systems

Versatile Applications: From aircraft hangars, garages and showrooms, greenhouses, museums, low energy factories & warehouses, non-food distribution centres, sports halls, train maintenance depots, to superstore retail outlets.

Widest Range of Burner Inputs: This heating system offers the widest range of burner input of any continuous system. Capable of running three 46kW in a radiant branch for a uniform distribution of heat

Common Vacuum Fan Operation: Stoichiometric combustion means this heating system operates with a 92% combustion efficiency. The optimum air/ gas ratio is maintained giving maximum comfort & efficiency whilst minimising fuel consumption.

Rapid Heat-up Times: Heats up surface areas quickly and efficiently

Aesthetic Integration: This unit will look in place in any environment it is installed within

Reliability & Safety: Operates to the latest European standard for multi-burner systems (EN 777)
