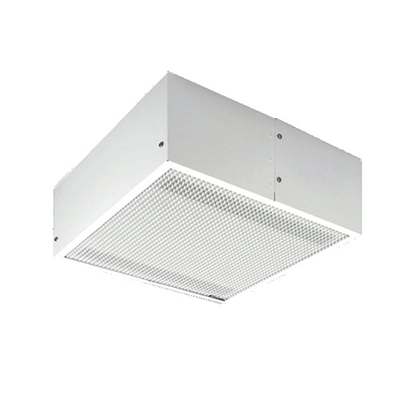

Reznor ACT Series Surface Mounted Ceiling Heater 3kW - 6kW

Reznor ACT Series Surface Mounted Ceiling Heater

Versatile, Robust Heating Solution

This unit is suited for a wide range of applications including installation within restaurants; retail outlets; showrooms and stockrooms. The unit looks perfectly in place when installed within any environment.

The ACT Series electric heater directs a down-flow of warm air from overhead, delivering immediate heat where required and rapidly creating a comfortable environment for building occupants. These surface mounted heaters come in in three heating capacities from 3kW, 4.5kW and 6kW.

This compact heater offers dimensions to fit shallow ceiling voids and can be seamlessly installed in a variety of environments.While this unit is surface mounted recessed unit that are embedded within ceilings are also available on our site.The range can be seamlessly installed within recessed ceiling tile. For most effective operation of the ceiling heater a maximum mounting height of 3m to 3.5m is suggested.

Surface Mounted
Model ACT03-1 S
Maximum heating capacity kW 3
Electrical supply V 230 volt 1 phase 50Hz
Total electrical load Amps 13
Dimensions mm 600H x 600W x 175H
Mounting height Minimum - Maximum mm 2200-3000
Mounting height Recommended mm 2500
Approximate weight kg 7
Model ACT04-1 S
Maximum heating capacity kW 4.5
Electrical supply V 230 volt 1 phase 50Hz
Total electrical load Amps 20
Dimensions mm 600H x 600W x 175H
Mounting height Minimum - Maximum mm 2200-3000
Mounting height Recommended mm 2500
Approximate weight kg 7
Model ACT06-1 S
Maximum heating capacity kW 6
Electrical supply V 230 volt 1 phase 50Hz
Total electrical load Amps 27
Dimensions mm 600H x 600W x 175H
Mounting height Minimum - Maximum mm 2500-3500
Mounting height Recommended mm 3000
Approximate weight kg 10

Immediate Warmth: Quickly generates a consistent wave of warm air flow ensuring a well-regulated temperature standard throughout any environment.

Discreet Installation: This compact unit offers dimensions to fit shallow ceiling voids and thus can be seamlessly installed in a variety of environments.

Low Maintenance: Removal of base grill provides easy access to the inner mechanics of the heating system.

Quiet Operation: Operation of this unit creates minimal noise pollution.

Surface Mounted or Recessed: Versatile variety of installation applications. While this unit is surface mounted recessed unit that are embedded within ceilings are also available on our site.

Three Heating Capacities: Available in three heat capacity outputs of 3kW, 4.5kW & 6kW.

Available in a White Finish with Grilles: Ensures visual integrity of unit when installed in any environment.

Suited for Multiple Applications: IncludingRestaurants, Retail outlets, Showrooms, Stockrooms (surface mounted)
