Powrmatic Vision 3.1 DW/H Air Conditioner with 1kW Heater 3.1kW

Powrmatic Vision 3.1 DW/H Heat Pump Air Conditioner

3.1kW COMPACT AIR CONDITIONING UNIT WITH EXTRA HEATING POWER

The Powrmatic Vision 3.1 DW/H Heat Pump Air Conditioner is a compact air conditioner with a twin duct system and a heat pump to provide an excellent climate control experience for a wide range of spaces up to 24m², including hotels, spas, shops, bars, restaurants, modular buildings, contemporary residences and many more. While the quality Vision air conditioner has a dual power feature to ensure an excellent level of energy economy, it still offers full climate control, allowing you to select between the lowest and highest capacities for heating and cooling. The Vision 3.1 DW/H has a cooling output of 3.1 kW, which can effectively cool a room and maintain a comfortable environment in the summer and during warmer periods. On the other hand, it is also equipped with a heating capacity of 3.05kW, which can be used to warm spaces during the winter and colder spells, providing efficient and effective temperature control all year round. To ensure optimum heating performance even at extremely low outdoor temperatures, the 3.1 DW/H boasts an additional 1kW electric heater that intervenes automatically to keep the heat pump functioning at an ideal level.

Durability And Performance Ensured

The 3.1 DW/H also has excellent A+-rated energy efficiency because of the dual power function and DC inverter technology. They allow for a discreet operating sound level of 27-41dB and stunning energy efficiency, alongside the best possible heating and cooling performance. The Powrmatic air conditioner can extract up to 21.6 litres of moisture per day, which is important for keeping a room's temperature just right. The Vision 3.1 DW/H is also perfect for use in areas where noise levels need to be kept to a minimum, such as bedrooms, living rooms and small offices. The unit's compact size would allow for easy installation and placement in areas where space is at a premium.

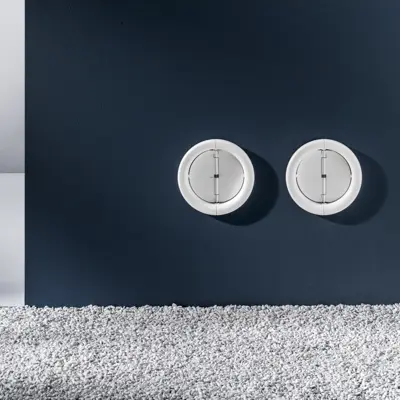

The 3.1 DW/H suits a variety of interior design styles with its compact, smooth outer shell with rounded corners and polished white PPC finish over a full metal body. Despite having a flexible and streamlined style, the sturdy body ensures durability and consistent performance by eliminating and minimising the use of plastic parts and moving parts respectively. Since the Powrmatic unit does not require any external condensers, it only needs to have two duct holes installed through the wall, making it an ideal option for listed buildings as there is no compromise needed regarding the building's structure. The device comes with subtle external grilles that may be used to cover a 160mm twin duct and an 18mm condensate pipe. They ensure the proper inlet and outlet of the supply and discharge air. It can be installed at a high, mid, or low level on the wall of any space, offering an efficient heating and cooling experience while preserving a pleasant aesthetic appeal.

Alternatives For Versatile Control

The Vision 3.1 DW/H boasts four different control options for maximum convenience. They are easy to read, and all features are swiftly and simply adjustable. In addition to the conventional remote control, there is an integrated touchscreen on the body panel, a hard-wired remote touchscreen, and a mobile app for both Apple and Android smartphones that can control multiple units simultaneously.

With the app, you can monitor and change individual units' temperature settings, fan speed and airflow direction from a single location using the local WiFi network. Larger houses, offices and hotels can all benefit from this. Hotels can reduce their energy costs by using the app to automatically change the on/off status of every device in the rooms based on occupancy levels. Thanks to its modern design and user-friendly controls, the Vision 3.1 DW/H is suitable for hotel rooms, restaurants and other hospitality applications. All functions can be set via the unit's onboard control, such as a "lock" position to hinder incorrect use and weekly scheduling. An individual hard-wired controller mounted close to the device is another option for those who prefer a physical controller.

Swift And Straightforward Installation

Since any skilled tradesperson can install the Powrmatic Vision, there is no need for an air conditioning engineer for the through-the-wall installation, which only takes a few hours to complete. There is no large, external unit that needs to be connected from the outside of the building. Furthermore, no downtime would be induced for rooms during installation because each unit can be quickly and effectively set up in four steps. This feature is particularly beneficial for hotels because it avoids delays to regular service and room reservations, which might lead to a loss in revenue. The simple installation ensures the least disruption to a hotel’s daily operations. Without the need for a large condenser unit, it allows you to save much of the space that a traditional air conditioning system would require on roofs, external walls, and even the ground. Utilising these units as an alternative to conventional air conditioning is more cost-effective and straightforward.

Available Options

The powerful and versatile air conditioner comes with a remote control and is compatible with an excellent range of accessories. There is an optional Vision wired controller that can be mounted near the unit. A bottom panel is also available. The panel is an aesthetic closure plate for mid- and high-level installations. A condensate nebuliser can be supplied to replace the standard external condensate pipe. The nebuliser heats the condensate output air so that it becomes vapour, which can then be expelled by the integrated fan. This is useful if you want to avoid condensate water running down external walls or alongside buildings.

Cooling Capacity kW: 2.35
Cooling Capacity - Dual Power Max / Min kW: 3.1 / 0.9
Heating Capacity kW: 2.36
Heating Capacity - Dual Power Max / Min kW: 3.05 / 0.8
Power Input In Cooling W: 730
Power Input In Heating W: 720
Power of Electric Heater kW: 1
Dehumidification Capacity l/h: 0.9
Power Supply Voltage V/F/Hz 230/1/50
EER W/W: 3.22
COP W/W: 3.28
Energy Efficiency Ratio When Cooling: A+
Energy Efficiency Ratio When Heating: A
Dimensions (W x H x D) mm: 1030 x 555 x 165
Weight Kg: 48.5
Refer To Model Noise Level (Min / Max) dB(A): 27 / 41
Wall Hole Diameter / Condensate Drain mm: 162 / 18
Refrigerant Gas: R410A

3.1kW Cooling Capacity: With excellent cooling power, the Powrmatic Vision 3.1 DW/H Air Conditioner is ideal for cooling rooms in the home, and commercial spaces such as offices, restaurants, bars, hotel rooms and more.

3.05kW Heating Power: The included heat pump makes it a versatile unit that can be used all year round, providing both cooling and heating options.

Additional Heater: The 3.1 DW/H comes with an extra, integrated 1kW heater to keep the heat pump working at optimum efficiency even at extremely low outdoor temperatures. It automatically kicks in when the outside temperature drops drastically low.

4 Different Controls: Depending on your requirements, the Vision 3.1 DW/H can be used in four different ways. There is a hard-wired remote touchscreen, an integrated touchscreen on the body panel, a mobile app, and a remote control.

Super Slim Design: The unit is perfect for applications in all kinds of spaces thanks to its compact profile, rounded corners, and soft, polished white PPC finish.

A+ Energy Efficiency: The Powrmatic Vision includes a dual power feature that automatically adjusts the capacity to effectively heat and cool a room, as well as DC inverter technology that ensures the most energy-efficient and quietest performance.

No External Condenser: The Vision 3.1 DW/H is supplied with inlet and outlet vents for the supply and discharge of air with the least amount of exterior disruption. It also has a built-in condenser and two external grilles, so there is no need for a bulky outdoor condenser.

Packed Terminal Air Conditioner (PTAC): The Vision 3.1 DW/H is a low-level, twin-duct PTAC air conditioning unit that eliminates the need for an exterior unit, which lowers the cost of installation.

Simple & Fast Installation: The Vision doesn't need an external condenser and doesn't require an F-Gas certificate, so any qualified tradesperson can install them. The air conditioner requires only the installation of two small vents in the wall to enable exhaust air and condensate to escape outside. The unit is ready for installation and comes with everything required for installation.

Optional Condensate Nebuliser Available: Heats the condensate output air so that it becomes vapour and can then be expelled by the integrated fan. This is useful if you want to avoid condensate water running down external walls or alongside buildings.
