HEYLO PowerFilter 1000 Air Cleaner 230v 917 m³/h

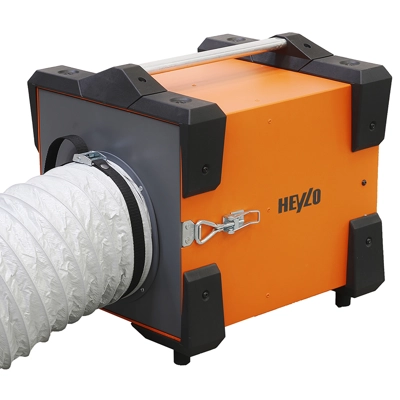

HEYLO PowerFilter 1000 Air Cleaner

Removes hazardous particles from air, such as dust, mould spores, pollen, smoke & more

The HEYLO PowerFilter 1000 is an industrial air cleaner, designed for use on site during construction and renovation work. This mobile air filter offers two-stage filtration, to remove suspended particles in the ambient air, such as coarse or fine dust, mould spores, pollen, animal hairs, smoke and more.

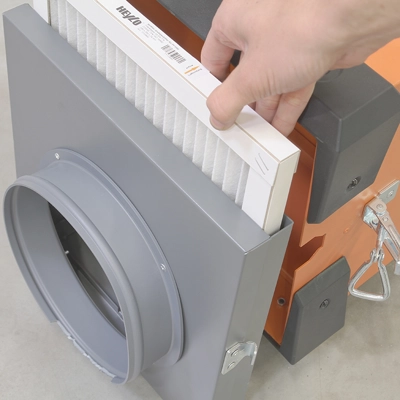

This portable air cleaner sucks in ambient air through the air intake and pumps it out through the air outlet. First stage and main filters are installed in front of the air intake. The preliminary filter (first filter stage) filters out coarse dust up to 3 µm and the main filter (second filter stage) fine dust and airborne particles up to 1 µm.

The device may be installed inside or outside the space or room the air in which is to be cleaned and ducting can be used on the air inlet and outlet to vent the air around.

A range of filters are available for the HEYLO PowerFilter 1000 air cleaner, to suit different applications:

First Stage Filters

Z-Line first stage filter (coarse dust filter) Class G + per EN 779
First stage filter of the main filter
Filter for specific coarse dust up to 3 µm
Separation efficiency 85-98 % at 10 µm and 30-55 % at 1 µm
Coarse dust filtration

First stage charcoal filter
First stage filter for cleansing air of organic substances
Binds odour molecules such as mould, tobacco smoke, heating oil fumes, solvent fumes and ozone

Main Filters

Fine dust filter Class F9 per EN 779
Dust class M per EN 60335
Main filter cartridge for fine dust particles and particles up to 1µm.
Separation efficiency 99.9 %,
Suitable for areas with major dust generation

HEPA H14 airborne particle filter per EN 1822
Dust class H per EN 60335
Main filter cartridge for airborne particles and particles up to 1 µm
Separation efficiency 99.995 %,
Suitable for rooms / spaces requiring cleansing to the highest standards, e.g. laboratories, industrial premises and medical uses.

Charcoal filter
Main filter for cleansing air of organic substances
Binds odour molecules such as mould, tobacco smoke, heating oil fumes, solvent fumes and ozone.

Article No.: 1110897
Ventilator-air flow rate max. without filters (cum/h): 917
Air flow rate with free M-filter (cum/h): 760
Air flow rate with free H-filter (cum/h): 515
Air flow rate by saturated filters (cum/h): 346
Compression (Pa): 920
Electric connection (V/Hz): 230 / 50
Power consumption (kW): 0.185
Power consumption (A): 1.33
Length / Width / Heigth (mm): 490 / 350 / 410
Weight (kg): 14
Volume (dB(A)): 66
Protection Class: IP44
Hose diameter intake / outlet side (mm): 205
Room size with 15-fold air exchange (m³): 23
Max. area performance with 15-fold air exchange (m²): 8

Two Stage Air Filtration: The HEYLO PowerFilter 1000 air cleaner features a pre-filter and main filter housing. The preliminary filter (first filter stage) filters out coarse dust up to 3 µm and the main filter (second filter stage) fine dust and airborne particles up to 1 µm.

917 M³/Hour Max Airflow: Adjustable airflow, up to 917 M³/h. Offers great performance in rooms on construction and renovation projects, to ensure safety and reduce hazards.

Aluminium Housing: Robust metal housing offers lightweight design and great protection in challenging areas.

Portable Design: An integrated handle and compact design make this air cleaner very mobile and easy to move between work sites.

Stackable: Multiple units can be stacked on top of each other for easy transport & storage.

MID Energy Meter: Allows you to monitor energy used on the job

Ducting Connection: Ducting can be fixed to the air inlet and outlet on the HEYLO PowerFilter 1000 air cleaner, allowing you to vent air in and out of the machine as required.

Accessories Available: A wide range of optional filters and ducting are available for this air cleaner, allowing you to create the set-up required for your application.
