HEYLO FarbStop 3000 Portable Overspray Extraction Kit 230v 3,102 m³/hr

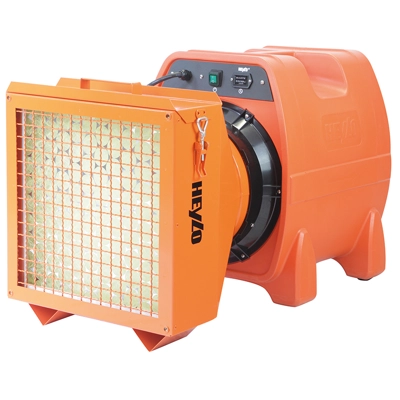

HEYLO FarbStop 3000 Portable Overspray Extraction Kit

Safely extracts overspray mist when spray painting in workshops & on site

The HEYLO FarbStop 3000 is a compact & portable overspray extraction kit, designed for use in workshops and on site when painting surfaces using compressed air or airless paint sprayers. The ink mist produced during painting must be drawn off safely. This kit includes the HEYLO PowerVent 3000 axial ventilator fan, a filter housing attachment and a dry overspray filter.

The HEYLO PowerVent 3000 is a tough and portable axial ventilator fan. It has a robust ABS plastic body which allows it to withstand challenging conditions on site and a powerful motor which gives the fan excellent airflow of up to 3,102 m³/h.

This portable fan can be used with lengths of ducting fixed to either end of the unit. This allows fresh air to be ducted into restricted spaces on sites, to aid with ventilation, cooling and drying; or to extract harmful fumes and dirty air from the work area. This fan can be used with up to 38m of ducting. It can also be used with a 3.5m M-Class dust bag, to aid with dust extraction on site. You can add ducting, a dust bag and the fixing clamp for the dust bag as accessories to your order using the tick boxes above.

Article No.: 1110871
Air flow rate max.(cum/h): 3102
Electric Connection (V/z): 230 / 50
Power consumption max.(kW): 0.65
Current consumption (A): 2.9
Length / Width / Height (mm): 520 / 400 / 530
Filter housing Length / Width / Height (mm): 450 / 430 / 450
Weight (kg): 23

Effective Overspray Extraction: This kit includes the HEYLO PowerVent 3000 axial ventilator fan, a filter housing attachment and a dry overspray filter, giving you everything you need for safe and effective overspray extraction on site and in the workshop when spray painting.

Max Airflow of 3102m³/h: This fan has a powerful motor and efficient axial fan, capable of excellent airflow, to push air over long distances.

High Quality Axial Fan: This hard-wearing fan moves air over long distances. It can withstand heavy use and is ideal for workshops, warehouses, construction and more.

Tough ABS Plastic Casing: Offers great protection in challenging areas, protecting the inner workings from bumps and knocks on site.

Supports Various Applications: With the efficient air inlet and an air outlet, the airflow that the fan creates can also be used to improve ventilation, cooling and speed up drying times on site.

Portable Design: A robust handle and compact design make this fan extremely mobile and easy to move between work sites.

Optional Ducting: Both the air inlet and air outlet on the unit can be fitted with 305mm diameter ducting, to blow air into confined spaces and extract fumes. It can also be used with 3.5m M-class dust bags for safe dust extraction on site. You can add ducting, a dust bag and a dust bag fixing clamp to your order using the tick boxes above.
