HEYLO DCS-PF1000 Dust Control System 917 m³/h

HEYLO DCS-PF1000 Dust Control System

Complete kit for containing & extracting dust & pollutants on site

The HEYLO DCS-PF1000 Dust Control System is a complete kit, designed to be erected quickly and easily around doorways and wall openings on site. It allows dust and pollutants such as mould spores, allergens and smoke to be contained on site and safely extracted. It is ideal for use during construction, renovation and decorating work. This system helps to reduce mess and contamination into other rooms, and improves safety.

This dust protection system includes the HEYLO DCD-3.0 dust control door, a HEYLO PowerFilter 1000 air cleaner, along with a G4 'coarse dust' pre-filter, F9 'fine dust' M-Class main filter and 7.6m ducting hose.

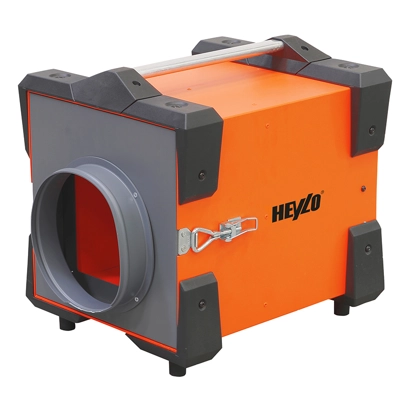

HEYLO PowerFilter 1000 Air Cleaner

The HEYLO PowerFilter 1000 is a compact and portable industrial air cleaner, designed to filter both coarse and fine dust from the air, as well as pollutants such as mould spores, allergens and smoke. It offers two-stage air filtration, with a pre-filter and main filter.The preliminary filter (first filter stage) filters out coarse dust up to 3 µm and the main filter (second filter stage) fine dust and airborne particles up to 1 µm. Flexible ducting can be fixed on to both the air inlet and outlet of the HEYLO FT 500 air cleaner. The 7.6m (205mm dia) flexible ducting included in the dust control system can be fixed on to the air intake, so that the machine can be used to extract dirty air from the work area through the dust control door.

A G-Class "coarse dust" pre-filter comes included with the system, to filter out coarse dust particles up to 3 µm. An F9 M-Class "fine dust" main filter is also included with the system, to filter out fine dust particles up to 1 µm. A HEPA H14 H-Class main filter is available as an optional accessory, suitable for filtering certain biological working materials, such as mould spores and other harmful substances. An activated carbon filter is also optionally available, which binds odour molecules, such as mouldy odour, tobacco smoke, heating oil odour, solvent vapours or ozone.

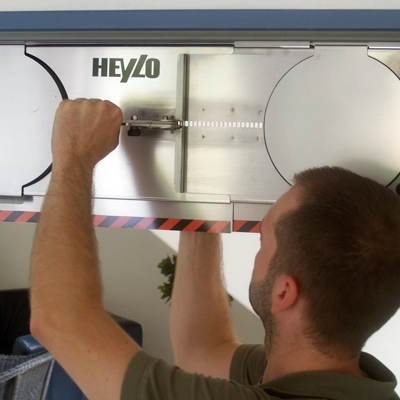

HEYLO DCD-3.0 Dust Control Door

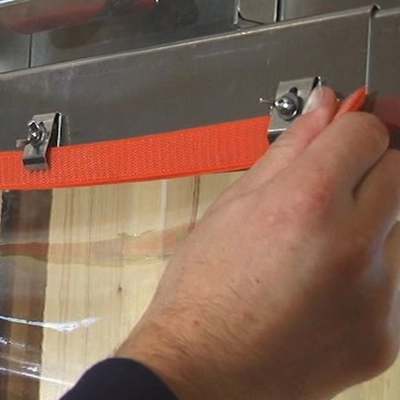

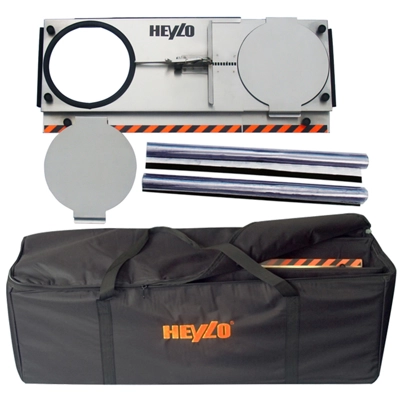

The dust control door kit includes the door base element, 2 x PVC foil, Velcro fastener and a transport bag. The door features two integrated openings with closing caps that allow for up to 2 x 205mm air hoses to be inserted. This allows the ducting from the PV 1000 air cleaner to be inserted, to create negative pressure and extract dust and pollutants from the space.

The HEYLO dust control door can be used for door widths from 680mm to 830mm. It can also be used on door widths of up to 1430mm, using optional adaptors to extend the width of the kit.

Optional Adapter Set For Wider Doors

An optional adapter set is available as an accessory, which features 4 adapters (A, B, C & D) and two extra dust sheets, which allow the dust control door to be used on wider doors.

To extend the dust control door width up to 1430mm wide, the following optional adapters will be needed:

• 680mm - 830mm: No adapters required.
• 830mm - 980mm: Adapter A (Right-150mm)
• 980mm - 1130mm: Adapter A (Right-150mm) & Adapter B (Left-150mm)
• 1130mm - 1280mm: Adapter B (Left-150mm) & Adapter C (Right-300mm)
• 1280mm - 1430mm: Adapter C (Right-300mm) & Adapter D (Left-300mm)

The PVC sheets included in the adapter setwill also be needed for wider door widths:

• 2 x DCD 3.0 PVC Sheets (W 68cm x L 200cm) - for entrance widths up to 1130mm
• 2 x DCD 3.0 PVC Sheets (W 100cm x L 200cm) - for entrance widths up to 1430mm

System Article No.: 1110892

PowerFilter 1000 Air Cleaner
Ventilator-air flow rate max. without filters (cum/h): 917
Air flow rate with free M-filter (cum/h): 760
Air flow rate with free H-filter (cum/h): 515
Air flow rate by saturated filters (cum/h): 346
Compression (Pa): 920
Electric connection (V/Hz): 230 / 50
Power consumption (kW): 0.185
Power consumption (A): 1.33
Length / Width / Heigth (mm): 490 / 350 / 410
Weight (kg): 14
Volume (dB(A)): 66
Protection Class: IP44
Hose diameter intake / outlet side (mm): 205
Included Hose Length (m): 7.6
Room size with 15-fold air exchange (m³): 23
Max. area performance with 15-fold air exchange (m²): 8

Dust Control Door
Basic element Length / Height / Width (mm): 680 - 830 / 300 / 81
Optional Adapter 1 Length / Height / Width (mm): 390 / 300 / 30
Optional Adapter 2 Length / Height / Width (mm): 240 / 300 / 30
Suitable for door widths (mm): 680 - 830 (up to 1430mm with optional adapters)
Weight (kg): 8
Hose connection (mm): 2 x 205

Complete Dust Protection Kit: This system includes the HEYLO DCD-3.0 dust control door, a HEYLO PowerFilter 1000 air cleaner, along with a G-Class 'coarse dust' pre-filter, F9 'fine dust' M-Class main filter and 7.6m ducting hose. Everything you need to seal off rooms on site, create negative pressure and extract dust & pollutants safely - reducing mess and improving safety.

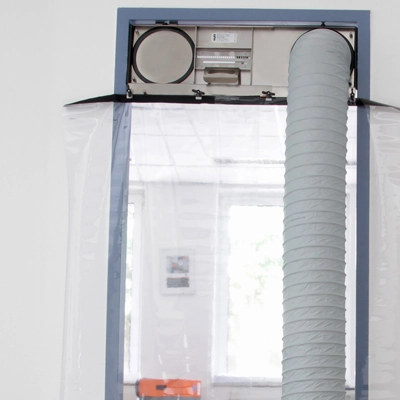

Dust Control Door: A quick & easy to erect kit for sealing off doorways and openings on site. Comes with door base element + 2 x PVC foil incl. velcro fastener + transport bag. Features two openings with caps, to allow ducting to be inserted, for the extraction of dust and fumes. Suitable for door widths of 680mm - 830mm. It can also be used on door widths of up to 1430mm, using optional adaptors to extend the width of the kit.

PowerFilter 1000 Air Cleaner: A compact, robust and portable 230v air cleaner. Features a tough aluminium body and 917 m³/h max airflow rate. Offers two-stage filtration using a pre-filter and main filter. Can be used with a range of filters to extract coarse and fine dust, as well as pollutants such as mould spores, pollen, smoke and more.

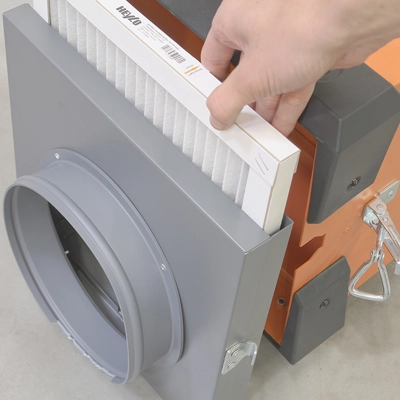

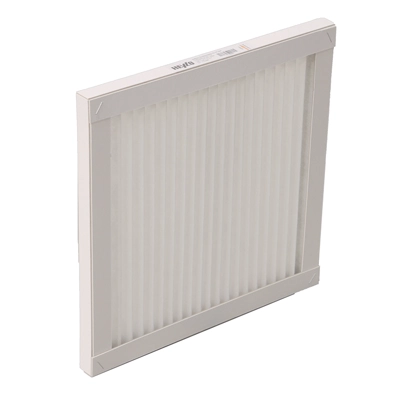

G-Class "Coarse Dust" Pre-Filter: Filters coarse dust particles up to 3 µm. Comes included with the system.

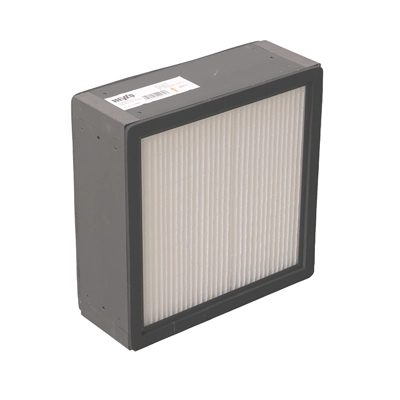

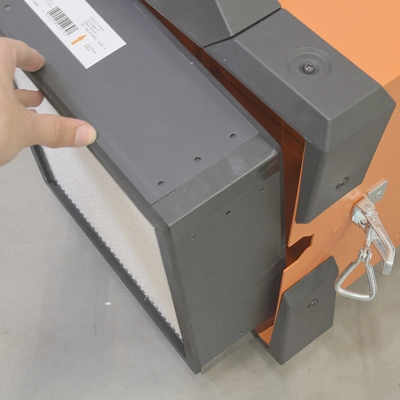

F9 M-Class "Fine Dust" Main Filter: Filters fine dusts and particles up to 1 µm. Comes included with the system.

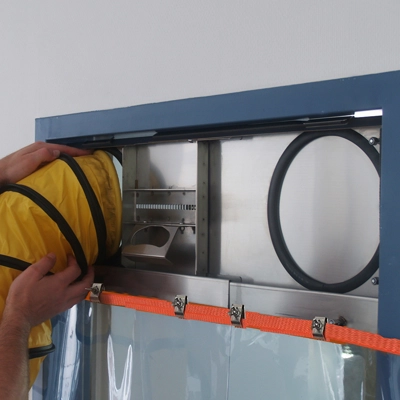

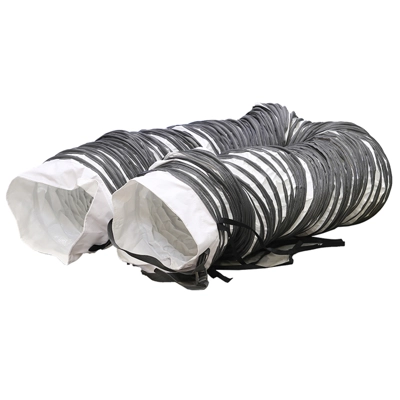

7.6m Ducting: Fixes on to the air cleaner and is inserted through one of the openings on the dust control door. Allows dust and pollutants to be extracted safely from the space.

Accessories Available: The dust control door is suitable for door widths from 680mm to 830mm. It can also be used on door widths of up to 1430mm, using optional adaptors to extend the width of the kit. Other filters are also available for the air cleaner, such as a HEPA H14 H-Class main filter, suitable for filtering certain biological working materials, such as mould spores and other harmful substances, as well as an activated carbon filter, which binds odour molecules, such as mouldy odour, tobacco smoke, heating oil odour, solvent vapours or ozone.
