Sonniger GUARD LPHW Air Curtain 9kW - 35kW

Sonniger GUARD Water-Fed Air Curtain

Thermal Barrier & Temperature Regulator

Struggling to maintain a comfortable indoor climate due to large entryways in a high traffic area? Heavy footfall entering a building will inevitably carry in outdoor air, massively impacting the temperature, causing discomfort and substantial increases in utility bills.

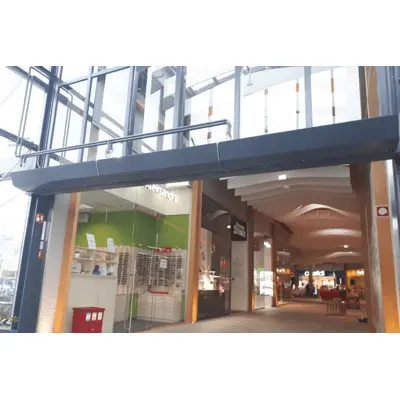

The Sonniger GUARD range of hot water-fed air curtains efficiently minimise heat loss in high traffic entryways. These efficient thermal barriers are perfect for commercial spaces, especially restaurants, bars, hotels, offices, reception areas and sport centres.

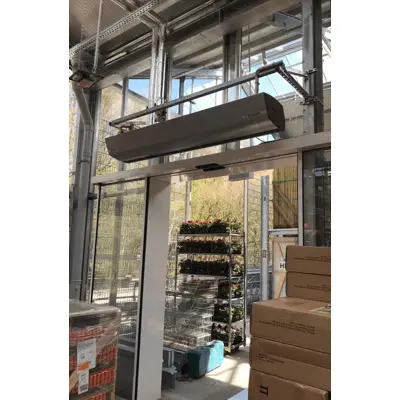

Each model features a sleek modern design to compliment and blend with any interior style. Mounting brackets are included for horizontal over door installation, though vertical mounting is possible with additional brackets sold separately. For larger openings, multiple units may be used in tandem for wider coverage.

The LPHW (hot water-fed) range creates a curtain of heated air, which not only significantly reduces the amount of energy loss from entryways, but also provides an alternative heating solution for areas with uneven coverage – set apart from any central heating, such as an open doorway.

Sleek, Cost-Effective & Efficient

The new and improved Sonniger GUARD range of air curtains boast high performance parameters with LPHW models delivering 9kW to 35kW heat output. LPHW models deliver an impressive 2000-4,800m3/hr airflow, up to 3.5m mounting height and air throw. Ambient and electric versions are also available on our site.

The units facilitate flexible control options and three speed settings, altering the height of performance parameters, so you can regulate the volume of heat permeating into or exiting the building.

Noise levels are as low as 59 dB(A), meaning the invisible barrier will silently work away to preserve the indoor climate without a worry of disruption whilst the unit operates. All models in the range feature an operation temperature range of -10^oC to +40^oC, so the air curtain is suitable for use in challenging climates, such as industrial warehouses and factories. Plus, with an IP20 rating, the air curtains are resistant to dust and debris carried indoors by wind or kicked up by footfall passing through.

Model: Guard 100W water fed (LPHW)

Unit Length (m): 1

Heat Output (kW): 10-16*

Max Airflow (m3/hr): 2,000

Fan Consump. (A) on 230V Single Phase Supply: 1.95 A

Fan Motor Power (kW): 0.22

Noise Level (dB(A)): 59

Max Install Height (m): 3.7

Protection Class (IP): IP20

Model: Guard 150W water fed (LPHW)

Unit Length (m): 1.5

Heat Output (kW): 20-29*

Max Airflow (m3/hr): 3,600

Fan Consump. (A) on 230V Single Phase Supply: 2.6 A

Fan Motor Power (kW): 0.32

Noise Level (dB(A)): 61

Max Install Height (m): 3.7

Protection Class (IP): IP20

Model: Guard 200W water fed (LPHW)

Unit Length (m): 2

Heat Output (kW): 25-40*

Max Airflow (m3/hr): 4,800

Fan Consump. (A) on 230V Single Phase Supply: 2.6 A

Fan Motor Power (kW): 0.32

Noise Level (dB(A)): 62

Max Install Height (m): 3.7

Protection Class (IP): IP20

High Energy Efficiency: Minimises heat loss in high traffic areas around open entryways – reducing costly utility bills and adding comfort.

Mounting Heights: Suitable for heights of 3.5 metres with mounting brackets included for horizontal above door installation.

Three Fan Speed Settings: Select between three fan speeds to alter the height of performance parameters, so you can regulate the volume of heat permeating into or exiting the building.

Modern Design: The sleek steel style will compliment and blend in seamlessly with any contemporary interior, an ideal addition to commercial spaces such as hotels and reception areas.

IP20 Rating: The Sonniger GUARD range is protected against solid objects and liquids, such as dust and debris carried in by wind or kicked up by footfall passing through.

-10^oC to +40^oC Operating Range: GUARD air curtains are suitable for use in challenging climates, such as industrial warehouses and factories where temperatures can reach as low as -10^oC.
