Fral Avalanche FACSW22 Water-Cooled Split Portable Air Conditioner 230v 6.7kW

Fral Avalanche FACSW22 Water Split Portable Air Conditioner 230v

Powerful 6.7kW split air condition system for offices, data centres & workspaces

The Fral Avalanche FACSW22 Water Split Portable Air Conditioner is a powerful 6.7kW portable water-cooled air-conditioning unit capable of cooling spaces up to 55m2 with a maximum airflow of 1,500m3h. Ideal for computer suites, offices, hospitals, portable buildings or hospitality, the Fral Avalanche FACSW22 portable air conditioner delivers its impressive cooling power off a standard 13amp supply.

The Avalanche FACSW22 comes with an external unit, which can be positioned up to 30m away from the main unit thanks to glycol fast connecting umbilical lines. 20m & 30m umbilical lines are available as optional accessories.

Designed with a self-contained chilled water system, this water split portable air conditioner circulates water through a cooled condenser. Heat is absorbed before being pumped to the outdoor unit where it is cooled and then recirculated back inside.

The Fral Avalanche FACSW22 also boasts a built-in thermostat that regulates the indoor air temperature to the set level required and can operate down to a temperature of 10°C, while a hot gas system helps accelerate the defrosting of any ice that forms on the evaporator.

Made of sturdy galvanized steel, the Avalanche is painted with epoxy powder to ensure high resistance to atmospheric agents and aggressive environments. The panels are also removable to allow quick inspection and maintenance of internal parts.

The FACSW22 features a microprocessor that controls the defrosting cycles, compressor timer, temperature and alarm. Plus, the unit is equipped with step sequence control. One of the most versatile portable air conditioning unit on the market, the Fral Avalanche is easy to install with quick connect couplings on the water lines and weights only 110kg.

The Avalanche split unit has been designed for fast installation and start-up, requiring only a 230v, single phase power supply. It is a free-standing unit and can cool specific areas by utilising the three-speed fan outlet at the front of the unit. Optional extras include a 20m and 30m water line umbilical cords, which are available to order using the tick box above.

Cooling Capacity: 6.7kW/23000Btu/hr
Weight: 86kg
H x W x D: 103 x 82 x 36cm
Suitable Area: 55m2
Operating Range: 10 - 35ªc
Noise Rating: 49dba
Line Length: Up to 30m
Line Diameter: 50mm
Tank Capacity (L): No tank
Current (A): 12
Power (W): 2700
Voltage (V): 240

6.4kW Cooling Capacity: High-quality air-conditioning system for cooling a range of commercial and industrial spaces.

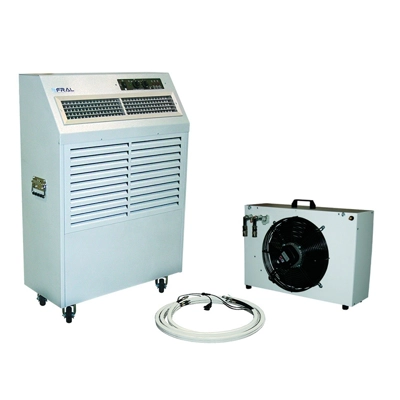

Split Air Conditioning System: This 230v portable air conditioning system consists of the main unit, which sits within the space, and a smaller heat rejector unit, which sits outside and dispels warm air.

Condensate Pump: Automatically removes water and pumps it away, which allows the unit to run continuously.

Optional 20m & 30m Umbilical Lines Available: The two units are connected via umbilical cord, which comprises of a flow return pipe, condensate pipe and a power cable within a protective plastic tube, to supply the fan on the outside unit. Use the tick box to add your choice of umbilical line to your order.

Built-in Digital Thermostat: Switches the unit on or off according to the desired environmental settings.

Sturdy Steel Frame: Made of sturdy galvanized steel, the Avalanche is painted with epoxy powder to ensure high resistance to atmospheric agents and aggressive environments. The panels are removable to allow quick inspection and maintenance of internal parts.

Hot Gas Defrost: Enables the unit to be used in environments with temperature up to 10°C and helps accelerate the defrosting of any ice that forms on the evaporator.

Washable Air Filter: Supplied as standard, the polyurethane air filter is washable and easily replaced.

Microprocessor: Controls the defrosting cycles, compressor timer, temperature and alarm. Plus, the unit is equipped with step sequence control.

Castors: Mounted on a set of robust wheels, these air con units can be moved around different areas easily and used wherever they are needed.
