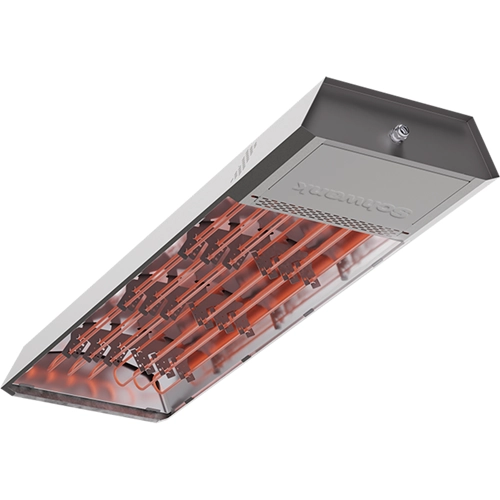

eSchwank S-9000 Electric Infrared Radiant Heater with infraGlow 9kW

eSchwank S-9000 9kW Electric Infrared Radiant Heater with infraGlow

High-Performance Electric Infrared Heating

The eSchwank S-9000 with infraGlow is a powerful 9 kW electric infrared heater built for large commercial and industrial environments. Designed for workshops, warehouses, showrooms, and loading bays, it delivers fast, even radiant warmth with exceptional efficiency and reliability.

Durable & Efficient Design

Engineered for heavy-duty applications, the eSchwank S-9000 uses robust infraGlow heating elements and a highly reflective aluminium reflector to maximise heat output. With a surface temperature of up to 800 °C, it provides effective radiant warmth for areas with high ceilings or open layouts.

Three-Stage Power Modulation

This model includes three-stage output control as standard, allowing operators to select between 3 kW, 6 kW, or 9 kW output. The flexible modulation helps match heating performance to real-time demand, reducing energy consumption and operational costs while maintaining consistent comfort.

Compact & Maintenance-Friendly Construction

The eSchwank S-9000 combines a slim, lightweight design with a service-friendly layout. Heating elements can be replaced in minutes, and the system can be installed horizontally or at an angle up to 45°. It requires a minimum suspension height of 5 m (vertical) or 4.5 m (angled), with an IP42 splash-proof rating for safe use in industrial environments.

Zero Emissions & Climate-Neutral Operation

As a fully electric system, the eSchwank S-9000 produces zero direct emissions and requires no flue or ducting. When powered by renewable or PV energy, it operates completely climate-neutral — supporting sustainability goals without compromising on performance.

Buy from National Heater Shops

Purchase the eSchwank S-9000 9kW Electric Infrared Radiant Heater with infraGlow from National Heater Shops — the heating specialists. We supply trusted brands, expert advice, and fast UK delivery for commercial and industrial heating projects.

Model: eSchwank S-9000
Series: S-Series with infraGlow Elements
Nominal Output (W): 3000 / 6000 / 9000
Rated Voltage: 400 V / 50 Hz
Current (A): 13
Surface Temperature: 800 °C
Minimum Suspension Height (Vertical): 5.0 m
Minimum Suspension Height (Angled): 4.5 m
Mounting Angle: Up to 45°
Dimensions (mm): 1963 (L) × 395 (W) × 204 (H)
Weight (kg): 22
Protection Rating: IP42 (splash-proof)
Reflector Geometry: Highly reflective aluminium for optimal heat distribution
Heating Elements: infraGlow, impact-resistant, approx. 50,000 hour lifespan
Serviceability: Replaceable heating elements for fast maintenance
Efficiency Compliance: Meets ErP Directive efficiency criteria
Manufacture: Made in Germany
Construction: Aluminium reflector housing
Installation Type: Ceiling or angled wall mounting
Operation Mode: Three-stage modulation
Direct Emissions: None (fully electric)

Powerful Industrial Heating: Delivers 9 kW of direct radiant heat for warehouses, factories, and large commercial spaces.

infraGlow Technology: Durable, impact-resistant heating elements generate uniform radiant warmth at up to 800 °C.

Three-Stage Modulation: Adjustable power settings (3 / 6 / 9 kW) optimise comfort and reduce energy consumption.

Optimised Heat Distribution: High-polish aluminium reflector maximises radiant efficiency and coverage area.

Flexible Installation: Can be mounted horizontally or angled up to 45°; suitable for heights of 4.5–5 m.

Service-Friendly Design: Lightweight 22 kg construction with quick-change heating elements for minimal downtime.

Environmentally Sustainable: 100% electric, flueless, and compatible with renewable power sources for zero emissions.

The required Relay Box sits between the electrical distribution board and the heater to control the power supply to the unit.
