Ebac VA32 Mechanical Ventilation with Heat Recovery (MVHR) System

The Ebac VA32 Mechanical Ventilation with Heat Recovery (MVHR) system has been designed to get rid of air pollution indoors and to reduce heat loss throughout an entire home. Built in the UK by Ebac, the MVHR extracts air filled with moisture from particular wet areas of the home such as kitchen and bathrooms, and replaces it with fresh, filtered air. This not only improves the quality of the air we breath, but also takes better care of the structure of the home.

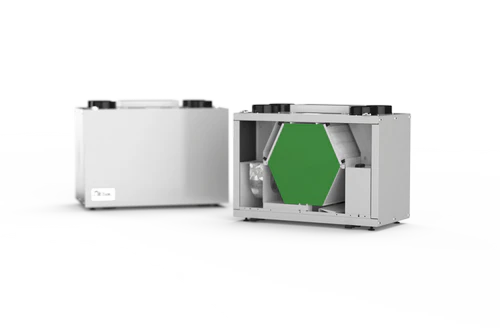

Unlike your standard extractor fan, that removes heated air from the building, the Ebac uses a heat exchanger to recover up to 88% of the heat from outgoing air, transferring it to the air being brought back into the house. We recommend the MVHR to homeowners and developers who are looking to lower energy bills without forfeiting inside comfort.

Features & Benefits: Ebac MVHR

Heat Exchanger: Recovers up to 88% of the heat lost through extraction, recycling it back through the home. Essential for keeping the house warm in winter while helping to reduce heating bills.
Temperature Sensors: Sensors automatically map the air, increasing fan speeds during showing for example, stopping damp and mould from ever forming.
Mechanical Bypass for Summer: The MVHR can extract cool air from the outside and distribute it evenly to bedrooms for a cooler night's sleep.
Efficient EC Fan: The electronically commutated (EC) motor provides ventilation to the whole house for less energy than an LED light bulb would consume.
G4 Supply Filters: The filters trap pollen, dust, and even insects before they get the chance to enter your home. This gives allergy and asthma sufferers immediate relief during peak seasons.

Standards & Certifications

Building Regulations Part F: Exceeds the required flow rate.
Building Regulations Part L: Lowers carbon emission rate (DER).
ISO 16890 / EN779 Air Quality Standard: G4 Coarse Filters extract and protect the heat exchanger.

Air Quality & Structural Protection

Stale air causes a build-up of volatile organic compounds (VOCs), allergens, carbon dioxide, with damp and mould contributing their fare share of damage to the fabric of your property. The Ebac MVHR uses a G4 coarse dust filter to trap and remove dust and other pollutants. The filter contributes to protecting the heat exchanger while providing much needed relief for asthma and allergy sufferers during peak seasons.

Built-in sensors map the CO2 and humidity present in the air, removing pollutants automatically when levels increase by increasing fan speeds.

AI SMART Control

The Ebac MVHR features an AI SMART control algorithm to figure out the best usage patterns for the property, as opposed to running constantly which is both costly and wasteful. Data can be viewed via the 3.5-inch touchscreen controller, and shows everything from airflow rates and energy consumption to sensor readouts.

Buy from National Heater Shops

The Ebac VA32 Mechanical Ventilation with Heat Recovery (MVHR) System is available to purchase from National Heater Shops today. We offer a Price Match Promise, rapid UK delivery and technical support from our HVAC team.

Also See More Like This:

Ventilation Home Ventilation

Product Code: VA32
System Type: Mechanical Ventilation with Heat Recovery (MVHR)
SEC Class: A+
Heat Recovery Efficiency: Up to 88%
Temperature Efficiency: 91%
Ventilation Capacity: 167 m³/h
Ventilation Capacity at 100 Pa: 242 m³/h
Flow Rate at 100 Pa: 242 m³/h
Flow Rate at 150 Pa: 225 m³/h
Flow Rate at 200 Pa: 210 m³/h
Static Pressure: 50 Pa
Specific Fan Power: 0.74–1.38 W/(l/s)
Rated Power at 70% Capacity: 47.4 W
Power Consumption (BS EN 13131-7:2021): 0.043 kW
Housing Emission: 62.3 dB(A)
Duct 'From Dwelling' Noise Level: 51.4 dB(A)
Duct 'To Dwelling' Noise Level: 62.3 dB(A)
Filter Class: EU4 (G4)
Summer Bypass: 100% Filtered
Humidity Sensor: Yes
CO₂ Sensor: Yes
Frost Protection: Yes
Controller: 3.5" Touchscreen
Digital Display: Yes
User Modes: Normal, Boost, SMART
Wireless Control: No
Zone Control: 1 Zone
Spigot Diameter: 125 mm
Spigot Connection: Top Only
Housing Material: Galvanised Steel
Wall Mounting: Yes
Floor Mounting: Yes
Weight: 35 kg
Plug Supplied: No
Warranty: 2 Years Parts & Labour
