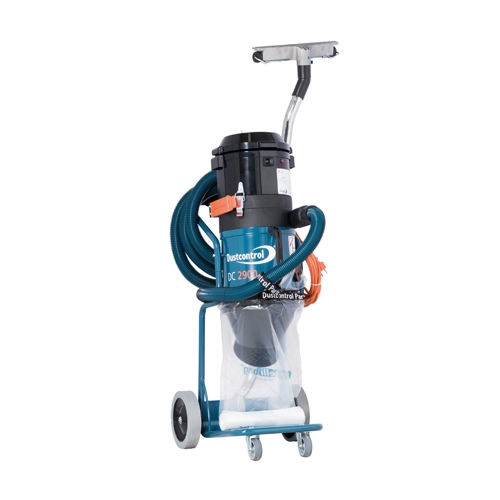

Dustcontrol DC2900C 230V Industrial Dust Extractor

Industrial Dust Extraction for Professional Applications

The Dustcontrol DC2900C 230V is suitable for vacuum cleaning and source extraction from handheld power tools with suction casings up to 5 inches, as well as small table saws. Its steel chassis and large wheels provide stability on site while maintaining portability for regular transport between work areas.

Filtration and Dust Management

The extractor is equipped with a cellulose fine filter (EN 60335-2-69, Class M) and a secondary HEPA filter with classification H13. The combination supports controlled dust separation for a wide range of construction and workshop tasks. The DC2900C configuration uses a plastic sack (intellibag) system for contained dust collection and simplified disposal.

Operational Performance

The unit supports general cleaning tasks and direct tool extraction. Airflow and negative pressure capacity allow use with saws, grinders and similar equipment within the recommended tool category. The steel frame helps maintain structural rigidity during movement and operation. The extractor remains lightweight enough for manual handling across multi-level sites.

Autostart Function

The DC2900C Autostart version includes an integrated outlet for tool-linked activation. When the selector switch is set to Auto, the extractor starts automatically when the connected tool is switched on.

Supplied Equipment

The DC2900C is delivered with a 5 m Ø38 mm suction hose, aluminium floor tool (370 mm), chrome steel suction pipe, intellibags, cellulose fine filter and HEPA H13 filter. The Antistatic version includes an antistatic hose set with Ø38 mm x 5 m hose and connectors.

Buy from NHS for compliant dust extraction equipment suitable for construction and workshop environments.

Model: DC2900C
Voltage: 230V

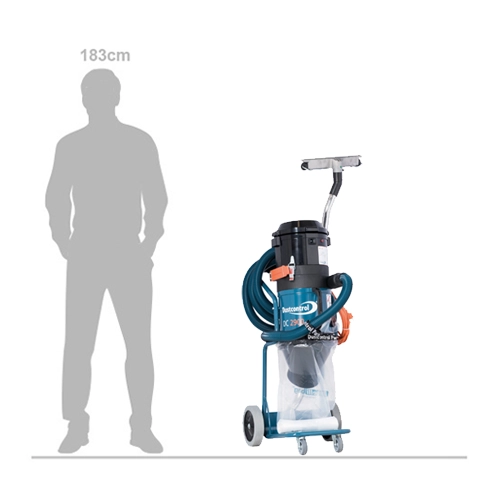

Dimensions (HxWxD): 1110 x 445 x 570 mm
Weight: 16 kg
Inlet Diameter: 50 mm
Hose Diameter: 38 mm
Hose Length: 5 m
Collecting Container Volume: 20 litres
Max Airflow (115V): 215 m³/h
Max Airflow (230V): 205 m³/h
Negative Pressure (max): 21 kPa
Power Input (115V): 1340 W
Power Input (230V): 1285 W
Autostart Connected Tool Power (115V, 10A): 1340 W
Autostart Connected Tool Power (230V, 10A): 1285 W
Autostart Connected Tool Power (230V, 16A): 2200 W
Fine Filter Area: 1.5 m²
Fine Filter Separation Efficiency (EN 60335-2-69, Class M): 99.9%
HEPA Filter Area: 0.85 m²
HEPA Filter Classification (EN 1822-1): H13
Machine Separation Efficiency (EN 60335-2-69, Appendix A-A, Class H): 99.995%
Max Sound Level: 68 dB(A)
Sack System: Plastic sack (intellibag) dust collection
Supplied Accessories: 5 m Ø38 mm hose, aluminium floor tool, chrome steel suction pipe, intellibags, fine filter, HEPA H13 filter
Antistatic Version: Supplied with antistatic hose set (Ø38 mm x 5 m)
Autostart Version: Tool-linked activation capability via integrated outlet
Applications: Tool extraction up to 5” casings, small table saws, general cleaning

Source Extraction Capability: Supports handheld tools with suction casings up to 5 inches and small saws.

Filtration System: Cellulose Class M fine filter with HEPA H13 secondary stage for controlled dust capture.

Dust Collection Method: Plastic sack (intellibag) system for contained handling and disposal.

Chassis Construction: Steel frame with large wheels for mobility across uneven surfaces.

Autostart Option: Automatic activation available when used with compatible power tools.

Supplied Accessories: Delivered with hose, aluminium floor tool, suction pipe, intellibags, fine filter and HEPA filter.
