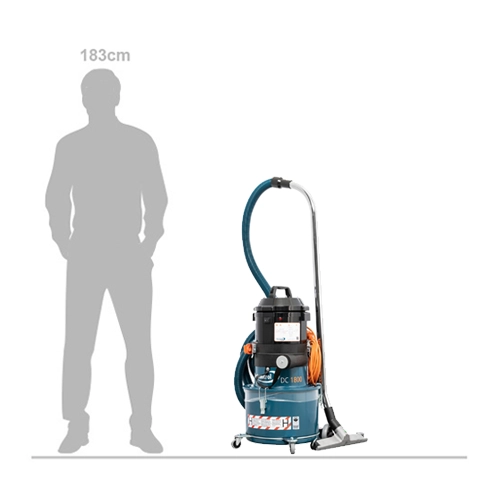

Dustcontrol DC1800 230V Industrial Dust Extractor

Industrial Dust Extraction for Professional Use

The Dustcontrol DC1800 230V is engineered for efficient source extraction from handheld tools and small woodworking machinery, as well as general cleaning tasks across construction, workshop, and rental environments. Its lightweight construction allows easy handling on site, while the compact footprint enables convenient storage beneath workbenches or in service vehicles.

Filtration and Dust Containment

The unit incorporates a cellulose fine filter with 99.9% separation efficiency (EN 60335-2-69, Class M) and a HEPA H13 filter stage with 0.85 m² surface area. Combined, the system provides 99.995% overall separation efficiency in accordance with EN 60335-2-69 Appendix A-A, Class H. Dust is collected within a steel container fitted with a disposable plastic sack for straightforward handling.

Performance and Operation

Operating at 66 dB(A), the DC1800 provides low-noise extraction suitable for continuous use in occupied or sensitive environments. Airflow and negative pressure performance support direct connection to suction casings up to 5 inches and a range of small table saws. The 230V version delivers a maximum power draw of 1285 W.

Autostart Function

The DC1800 Autostart variant allows a connected power tool to control the unit through the integrated outlet. When the selector switch is placed in the Auto position, the extractor activates automatically when the tool is switched on.

Included Components

The extractor is supplied with a 5 m Ø38 mm suction hose, aluminium floor tool, chrome steel suction pipe, plastic sacks with holder basket, cellulose fine filter, and HEPA H13 filter.

Buy from NHS for compliant dust extraction solutions engineered for professional environments.

Dimensions (HxWxD): 780 x 405 x 390 mm
Weight: 14 kg
Inlet Diameter: 50 mm
Hose Length (Ø38 mm): 5 m
Collecting Container Volume: 24 litres
Max Airflow (230V): 2200 m³/h
Negative Pressure (max): 24 kPa
Power Input (230V): 1285 W
Autostart Connected Tool Power (230V, 10A): 1285 W
Autostart Connected Tool Power (230V, 16A): 2200 W
Fine Filter Area: 1.5 m²
Fine Filter Separation (EN 60335-2-69, Class M): 99.9%
HEPA Filter Area: 0.85 m²
HEPA Filter Classification: H13
Machine Separation (EN 60335-2-69 Appendix A-A, Class H): 99.995%
Max Sound Level: 66 dB(A)
Included Accessories: Suction hose 5 m Ø38 mm, aluminium floor tool, chrome steel suction pipe, plastic sacks, sack basket, cellulose fine filter, HEPA H13 filter
