Dantherm Escape of Water Mitigation Package (Small)
- Small Water Mitigation Package
- Trotec TTK QUBE Dehumidifier
- 2 x TFV 29 FS Radial Fans
- BM31WP & BC21WP AppSensors
- 24/7 Duty Rated
- Compact, Site-Ready Units
Dantherm Escape of Water Mitigation Package (Small)

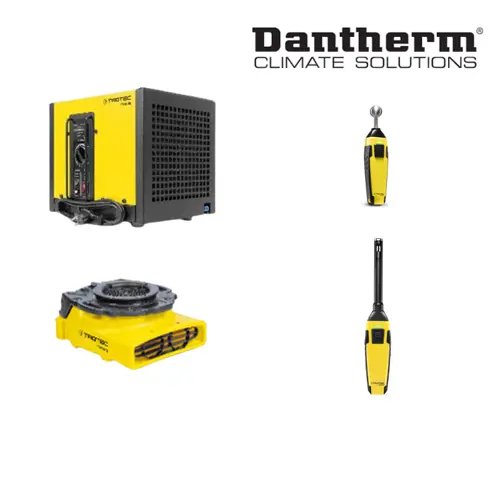

We have put together this package for professionals who are dealing with burst pipes, leaks or failures. It provides everything you need to deliver a structured drying system. We have included a Trotec TTK QUBE Dehumidifier, two TFV 29 FS Radial Fans and Trotec AppSensors (BM31WP & BC21WP) for use with the MultiMeasure Mobile app.
High-Efficiency Dehumidification

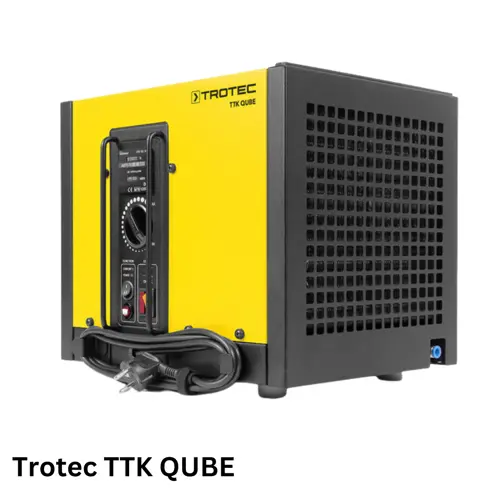

The Trotec TTK QUBE dehumidifier is at the centre of this package. We have chosen this for its reliability and its use for professional water damage restoration. It is designed for 24/7 operation and is even suitable for unheated properties. Its small footprint saves space without compromising on power.
Accelerated Evaporation
This package includes two Trotec TFV 29 FS radial fans to direct airflow to where it is needed most. They are specifically designed to break the boundary layer of moist air on wet materials. The fans can be stacked or tilted to direct air into hard to reach areas. We always recommend pairing air movers with dehumidifiers to reduce drying times and to prevent secondary damage.
Precision Monitoring

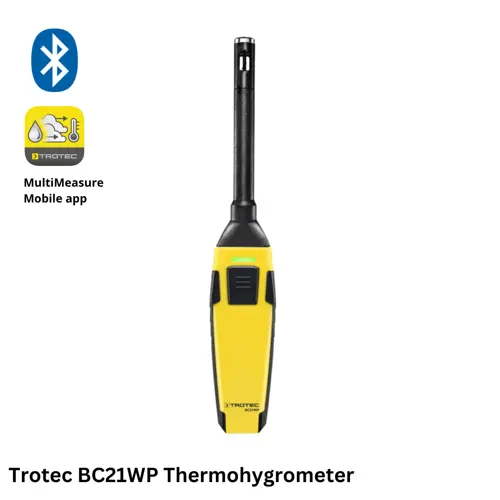

Professional AppSensors are included to help remove the guesswork. The BM31WP Moisture Indicator provides readings to track progress while the BC21WP Thermohygrometer monitors temperature and Relative Humidity (RH). You can use the MultiMeasure app to generate reports for insurance claims.
Why Professionals Choose This Package
This package includes everything needed for residential incidents. It's easy to transport and avoids the need for costly industrial units.
Expertise You Can Rely On
At NHS, our technical team can advise on the water damage and the realities on site. We offer a Price Match Promise on all products and provide a rapid UK delivery service.
Complete Package Technical Specifications
| TTK QUBE – Dehumidification Performance | Max. 20 L/24h |
|---|---|
| TTK QUBE – Air Flow Rate | Max. 283 m³/h |
| TTK QUBE – Recommended Room Size | 110 m³ / 45 m² |
| TTK QUBE – Ambient Temperature Range | 5 - 35 °C |
| TTK QUBE – Humidity Range | 50 - 90% r.F. |
| TTK QUBE – Electrical Values | Mains Connection: 220 - 240 V/50 Hz Nominal Current: 1.7 A Power Input: 0.362 kW Recommended Fusing: 10 A |
| TTK QUBE – Compressor Type | Rotary and Reciprocating Piston Compressor |
| TTK QUBE – Refrigerant Type | R1234yf, 140 g, GWP 4, CO2 eq. 0.00056 |
| TTK QUBE – Pressure | Suction Side: 0.3 MPa Outlet Side: 1.6 MPa Max. Permissible: 1.8 MPa |
| TTK QUBE – Sound Level | 53 dB(A) at 1 m |
| TTK QUBE – Features | Comfort Mode, Operating Control Lamp, Automatic Switch-Off, Drainage Button, External Condensate Drain Connection |
| TTK QUBE – Dimensions | Length: 315 mm Width: 382 mm Height: 340 mm |
| TTK QUBE – Weight | 16 kg |
| TFV 29 FS – Air Flow Rate | Max. 1,150 m³/h |
| TFV 29 FS – Air Current | Blowing out, Sucking in |
| TFV 29 FS – Fan Stages | 1 (Radial and Axial) |
| TFV 29 FS – Air Discharge Velocity | 7 m/s |
| TFV 29 FS – Air Pressure | Max. 290 Pa |
| TFV 29 FS – Transport Medium Temperature | Max. 60 °C |
| TFV 29 FS – Electrical Values | Mains connection: 230 V/50 Hz Nominal current: 0.74 A Power input: 0.17 kW |
| TFV 29 FS – Electric Connection | Plug: CEE 7/7 Cable length: 5 m |
| TFV 29 FS – Safety Feature | IP44 protection |
| TFV 29 FS – Sound Values | 64 dB(A) at 3 m |
| TFV 29 FS – Operating Hours Counter | Integrated |
| TFV 29 FS – Dimensions | 520 mm (L) x 450 mm (W) x 255 mm (H) |
| TFV 29 FS – Weight | 11 kg (packaging excluded) |
| BM31WP – Material Moisture | Min. Range: 0 Max. Range: 100 Resolution: 0.1 Measuring Principle: Dielectric / Capacitive |
| BM31WP – Ambient Conditions | Operating Temperature: 0°C to 50°C Min. Relative Humidity: 10% r.F. Max. Relative Humidity: 90% r.F. Relative Humidity During Storage: < 80% RH |
| BM31WP – Bluetooth | Version: 4.0 (BLE) Max. Transmission Range: 10m in open terrain |
| BM31WP – Dimensions | Length: 22 mm Width: 36 mm Height: 160 mm |
| BM31WP – Weight | 0.093 kg (packaging excluded) |
| BC21WP – Air Temperature [°C] | Min. Range: -20°C Max. Range: 60°C Resolution: 0.1°C Accuracy: ±0.8°C (at -20°C to 0°C), ±0.5°C (at 0°C to 60°C) |
| BC21WP – Relative Humidity [%] | Min. Range: 0% Max. Range: 100% Specified Min. Range: 5% Specified Max. Range: 95% Resolution: 0.1% |
| BC21WP – Bluetooth | Version: 4.0 (BLE) Max. Transmission Range: 10m in open terrain |
| BC21WP – Power Supply | 3 x 1.5V, AAA |
| BC21WP – Ambient Conditions | Operating Temperature: -20°C to 60°C Operating Humidity: 10% to 90% r.F. (non-condensing) Storage Temperature: -20°C to 60°C Storage Humidity: Up to 90% r.F. (non-condensing) |
| BC21WP – Dimensions | Length: 22 mm Width: 32 mm Height: 226 mm |
- 1 x Trotec TTK QUBE
- 2 x Trotec TFV 29 FS
- 1 x Trotec BM31WP App Sensor Moisture Indicator
- 1 x Trotec BC21WP Thermohygrometer
