Dalton EcoDesign Freestanding Stove 10kW

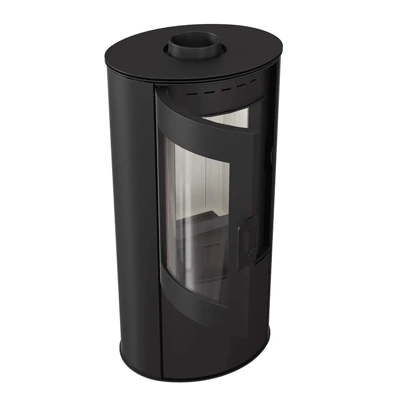

Dalton EcoDesign Freestanding Stove

Space-saving 10kW stove with triple air vent system

The Dalton EcoDesign Freestanding Stove is a great solution for people who long for the warmth of a traditional-styled stove but do not have the space. With its cylindrical and modern design, the Dalton EcoDesign is equally at home in both classical or contemporary interiors with its strong steel and cast-iron construction.

This freestanding stove is packed with innovative features to ensure a super clean burn that boasts an impressive heat output of 10kW. It also has a large quadrant glass door that offers a stunning view of the dancing flames.

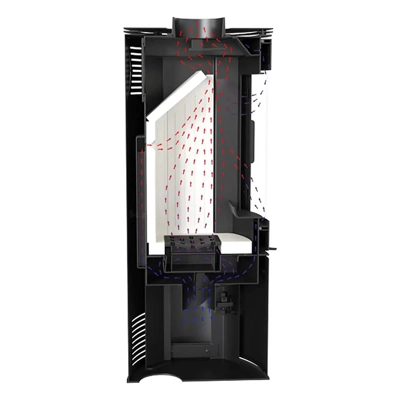

The Dalton has a triple combustion chamber air venting system. An external air intake provides air supply from the outside directly into the hearth, which results in better combustion and better comfort of usage. The combustion chamber is also lined with Termotec, which is a heat accumulating material that helps raise the temperature inside even further and helps accomplish a net efficiency of 78 per cent using seasoned hardwood.

Clean and simple in design, this freestanding stove is ideal for any room and will truly be the focal point of any home - just one of the reasons that makes it the favoured choice among homeowners and installers.

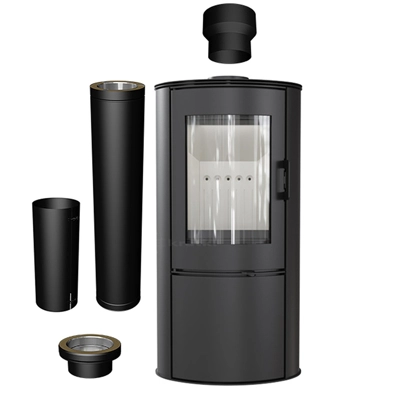

Optional extras include a flue starter kit that features a continental stove adapter, dura twin wall single to twin wall adapter, dura twin wall 1000mm straight length and a dura twin wall 500mm flat masking shroud.

EFFICIENCY: 78%
FUEL TYPE: Recommended seasoned hardwood with moisture ≤20%
MAX LOG LENGTH: 250mm
GLAZING TYPE: Quadrant
MATERIAL: Steel, cast iron
HEIGHT: 1052mm
WIDTH: 528mm
DEPTH: 422mm
WEIGHT: 110kg
RANGE OF HEATING POWER: 5.5 - 10.5kW
EXHAUST OUTLET DIAMETER: 150mm
DESIGNED FOR HEAT RECOVERY UNIT: Yes
FLUE GAS TEMPERATURE: 265℃

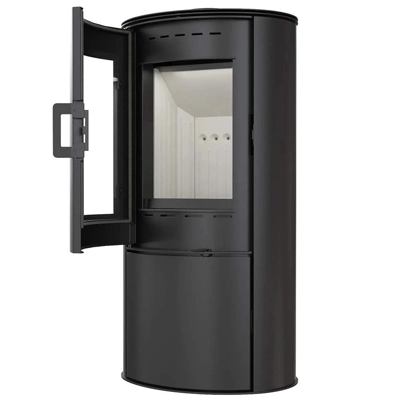

OPENING OF THE DOORS: To the left
THE LINER OF THE COMBUSTION CHAMBER: Yes

10.5kW Heat Capacity: The Dalton EcoDesign Freestanding Stove is a great solution for people who long for the warmth of a traditional-styled stove but do not have the space.

Made From Steel & Cast Iron: With its cylindrical and modern design, the Dalton EcoDesign is equally at home in both classical or contemporary interiors with its strong steel and cast iron construction.

Triple Air Vent System: An external air intake provides air supply from the outside directly into the hearth, which results in better combustion and better comfort of usage.

Termotec Lined Combustion Chamber: The combustion chamber is also lined with Termotec, which is a heat accumulating material that helps raise the temperature inside even further and helps accomplish a net efficiency of 78 per cent using seasoned hardwood.

Optional Flue Starter Kit: Starter Kit contains a continental stove adapter, dura twin wall single to twin wall adapter, dura twin wall 1000mm straight length and a dura twin wall 500mm flat masking shroud.
