Broughton MCe9.0 Heavy Duty Portable Air Conditioner 230v/110v 9kW

Broughton MCe9.0 Heavy Duty Portable Air Conditioner

Modern, efficient & effective 9kW portable air con unit made in the UK

The Broughton MCe9.0 is a modern, efficient and heavy duty portable monobloc air conditioner. With a cooling capacity of 9kW, it is suitable for cooling a range of commercial spaces up to 220m³.

This high quality portable air con unit uses a low GWP (Global Warming Potential) refrigerant, which is over 95% less harmful than some of the more commonly used traditional types of refrigerant. It also offers excellent low temperature operation, as it is capable of running down to 15°C.

Increased airflow, greater refrigerant coefficient performance and EC fans all help to reduce power consumption, maintain high cooling capacity and improve efficiency.

This powerful monobloc air conditioning unit utilises Broughton’s unique airflow delivery system, with EC fans and backward curved impellers. It is capable of generating high air pressure to power the exhaust air out of the unit over long distances through 200mm ducting. A 2.5m length of exhaust ducting comes included with the machine but the Broughton MCe9.0 has the capacity to duct exhaust air up to 10m away. You can add 10m exhaust ducting to your order as an optional accessory using the tick box above. The non-insulated ducting offers a cheaper option, whilst insulated ducting prevents exhaust heat radiating back into the area you are looking to cool, making the machine more economical.

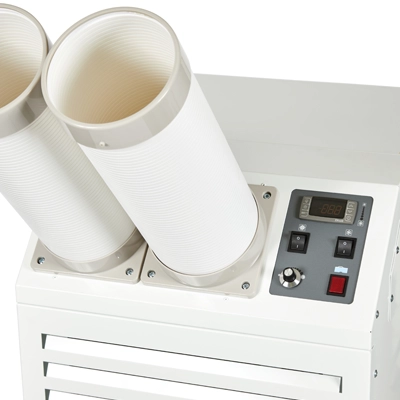

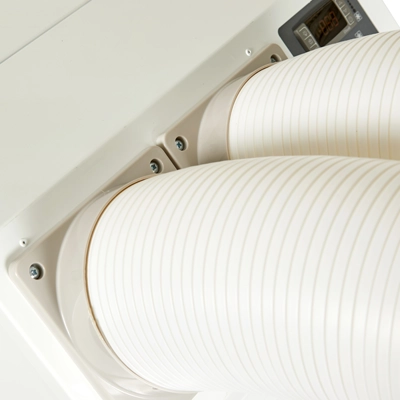

The dual cool air outlets allow multiple areas to be cooled at once, using the 2 x 500mm flexible cooling ducting which comes included with the machine.

The Broughton MCe9.0 portable air con unit features a digital thermostat, which allows you to select a required temperature and the unit will switch itself on and off automatically to maintain the set temperature level. It also has locking heavy duty castors, making it easy to manoeuvre and use wherever it is required.

This air con unit is available in standard 230v or 110v. You can select the model you require using the dropdown box above.

Cooling Capacity: 9kW
Typical Cooled Area 220m³
Power Supply: 230v 50Hz 13A UK Plug (110v & 230v 60Hz Available)
Running Current @ 35 Degrees / 40% Humidity: 10A
Refrigerant: R454C. 1300g
Maximum Permissable Refrigerant Pressure: 370 psi
Main Cooling Unit Noise Level: 65 dB(A)
Main Evaporator Airflow. Max.: 1080 m3h
Main Condenser Airflow Max.: 1800 m3h
Minimum Operating Temperature: 15°C
Maximum Operating Temperature: 35°C
IP Rating: IP2X
Dimensions HxWxD: 1192 x 526 x 774 mm (Including spigot)
Weight: 95kg
Exhaust Ducting: 200mm
Cooling Ducting: 2 x 150mm

9kW Cooling Capacity: High quality portable air conditioning unit, designed for cooling a range of commercial and industrial spaces such as offices, classrooms, workshops, warehouses and more, up to 220m³.

EC Fan Technology: Industry-leading use of EC fans, which have variable fan speed control, minimise noise output and maximise efficiency.

Backward Curved Impellers: Generate much higher pressure than axial fans so can be used to push air further and through smaller diameter ducting, which is much more manageable.

Low Temperature Operation: Capable of operating effectively down to 15°C.

Low GWP (Global Warming Potential) Refrigerant: Over 95% less harmful than some of the more commonly used traditional types of refrigerant.

Digital Thermostat: Allows a required temperature to be set and the unit will switch itself on and off automatically to maintain the set temperature level.

Made In The UK: High quality UK made unit. Built to last, easily serviceable, full availability of spare parts, technical support and a two year manufacturer's warranty.

Cool Air & Exhaust Ducting Included: 2 x 500mm click stop cooling ducting allows you to direct the cool air as required. A 2.5m length of exhaust ducting allows leftover warm air to be vented out of the space via a window.

Can Be Exhausted Up To 10m Away: This unit utilises Broughton’s unique airflow delivery system to power the exhaust air up to 10m away through 200mm diameter ducting. 10m ducting available as optional accessory. The non-insulated ducting offers a cheaper option, whilst insulated ducting prevents exhaust heat radiating back into the area you are looking to cool, making the machine more economical.

Locking Castors: Allow the unit to be positioned easily and used wherever it is needed.

Choice of Voltage Options: Available in standard 230v 50Hz or 110v.
