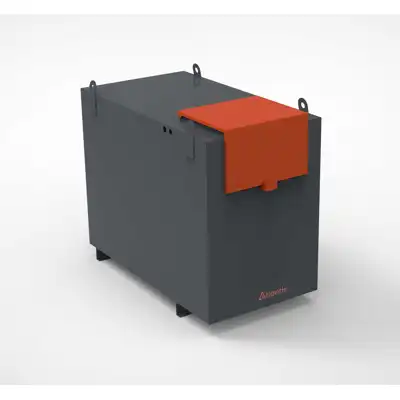

Atlantis PortaTank Steel Bunded Diesel Tank 450L - 2000L

Atlantis PortaTank Steel Bunded Diesel Tank

900 Litre bunded fuel container

This 900L bunded Atlantis PortaTank is an extremely high strength bunded fuel tank made from 3mm steel.

The bunded construction results in an incredibly safe storage tank. The tank is suitable for use in warehouses, workshops, construction sites, marquees and many other areas, for the secure storage and transport of diesel fuel to site, to keep space heaters, generators and other equipment running.

The tank features welded lifting eyes for lifting when full onto vehicles or into location.

Complete with ADR & UN approval, this fuel tank meets the requirements of the European Agreement concerning the international carriage of dangerous goods by road (ADR 2005).

This bunded steel fuel tank can fitted with generator flow and return lines, to be used as an external fuel tank for diesel fired space heaters, generators and other equipment. It can also be fitted with a wide range of different fuel dispensing nozzles, and used as a convenient refuelling point for equipment, tools and machinery on site. You can add generator flow and return lines to your order using the tick box above. Enquire with our sales team to find out more about the dispensing nozzle options.

Safe, Simple & Effective

Full of features to comply with health and safety regulations

Atlantis PortaTank diesel tanks are straightforward and convenient to use on-site.

They are easy to fill with fuel without any spillage. This is ideal for health and safety purposes as well as reducing fuel wastage.

PortaTanks have a gas sprung lockable lid for ease of use and security.

Inner baffles allow for liquid stabilisation during transportation, while a removable top enables access to the inner tank for cleaning. The inner tank also has manway access for maintenance.

Welded lifting eyes ensure that these fuel tanks can be lifted into place when full, while a mesh grid on the floor area helps prevent fuel residue on the hose. There is also an earth point on the tank for safety.

They also have a range of fittings for added convenience: 3″ fill point, vent, overfill sensor, contents gauge, lever ball valve for refuelling, 1 x 1″ suction port for a pump with van, suction tube, non-return valve and strainer, 3 x 3/4″ suction ports for plant/generator with a suction tube, non-return valve and strainer, 3 x 1/2″ return ports for plant/generator.

Capacity: 900 Litres
110% bunded (steel in steel) to ensure compliance with (PPG2)
Gas sprung lockable lid
Inner baffles for liquid stabilisation whilst in transit
Removable top, for access to inner tank manway and cleaning
The inner tank has manway access for cleaning
4-way forklift pockets
Easily securable with strapping hooks
Welded lifting eyes for lifting when full
ADR, UN & CE Approved (certificates with the tank)
Mesh grid on floor area, to prevent fuel residue on the hose
Earth point on the tank

Fittings:
3″ fill point
Vent
Overfill sensor
Contents gauge
Lever ball valve for refuelling
1 x 1″ suction port for a pump with van, suction tube, non-return valve and strainer
3 x 3/4″ suction ports for plant/generator with a suction tube, non-return valve and strainer
3 x 1/2″ return ports for plant/generator

Warranty: 1-year pump warranty and 5-year tank warranty (each tank is provided with a warranty manual)
Length: 1500mm
Width: 1180mm
Height: 1285mm
Weight: 560kg (empty), 1310kg (full)

Steel Outer Bund: Tough & hard-wearing outer casing acts as a bund to catch any fuel if there is a problem with the internal tank.

Steel Inner Tank: 110% bunded (steel in steel) to ensure compliance with PPG2.

900L Capacity: An ideal size for keeping a wide range of diesel fired space heaters and generators running on site.

Suitable For Transport: Approved for transport under ADR.

Inner Baffles: Offers liquid stabilisation while in transit.

Removable Top: Allows access to inner tank manway for maintenance and cleaning. The inner tank also has manway access for cleaning.

Four-way Forklift Pockets & Lifting Eyes: Allow the tanks to be lifted on and off transport easily when full or empty. Easily securable with strapping hooks.

Gas Sprung Lockable Lid: Protects the fuel line connections from unauthorised access and weather.

Mesh Grid: Located on floor area to prevent fuel residue on the hose.

Overfill Sensor: Alerts when fuel levels become too high to prevent any dangerous spillages.

Contents Gauge: Allows you to easily monitor the fuel level inside the tank.

Optional Generator Flow & Return Diesel Hose Kit Available: Can be used to connect the tank up to a space heater, generator or other equipment and act as an external fuel tank, to offer longer operating times without the need to refuel.

Optional Dispensing Pumps Available: We have a wide range of different dispensing pump, hose and nozzle options available, which allow this tank to refuel equipment and machinery on site. Options include 230v diesel pumps in a choice of flow capacities, hand pumps, 12v pumps, 24v pumps and more. Enquire with our sales team to find out more.
