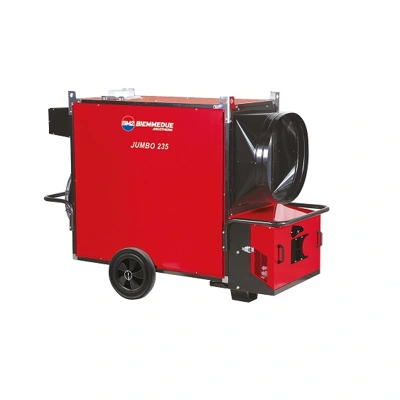

Arcotherm Package Jumbo 235M Indirect Oil Fired Space Heater - 240v 218kW

Arcotherm Package Jumbo 235M Indirect Oil Fired Heater

High-Performance Indirect Heater for Large Industrial & Commercial Applications

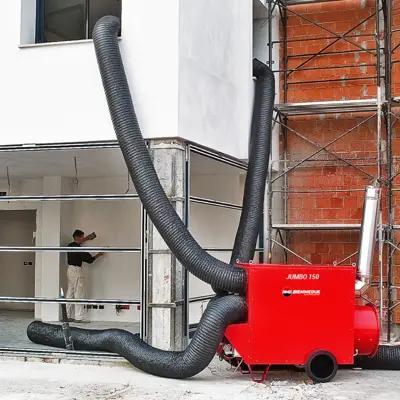

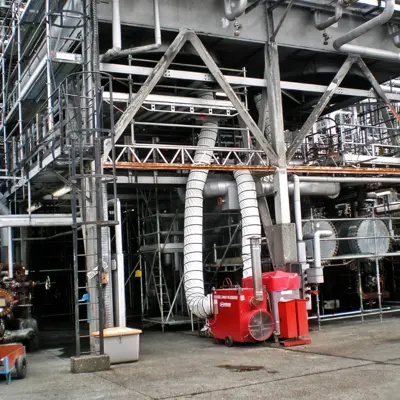

The Arcotherm Package Jumbo 235M Indirect Oil Fired Heater delivers exceptional performance for heating expansive spaces such as warehouses, factories, marquees, and construction sites. With a 218 kW heat output and an airflow rate of 17,000 m³/h, it provides fast, efficient, and fume-free warm air ideal for enclosed or occupied environments. It is also suitable for drying applications including construction projects, post-flood restoration, and agricultural use.

Complete Package Solution

This full heating package includes the Arcotherm Jumbo 235M indirect oil fired heater, Ecoflam diesel burner, Jumbo Tigerloop, 450 mm one-way ducting adaptor, flue pipe, rain cowl, and heavy-duty thermostat with 10 m lead. Each component is designed to integrate seamlessly, ensuring easy installation, safe operation, and dependable heating performance straight out of the box.

Durable, Industrial-Grade Build

The Jumbo 235M features a high-efficiency 7-blade fan and a redesigned combustion chamber for improved heat transfer and fuel economy. IP65-rated quick couplings protect against dust and moisture while allowing fast assembly and maintenance. Reinforced burner covers and a robust chassis provide impact resistance and structural integrity, while large transport wheels allow easy mobility across demanding site conditions.

Safe, Efficient Heating

As an indirect oil fired heater, the Jumbo 235M supplies only clean, fume-free warm air while exhaust gases are safely vented through the flue pipe. Thermostatic control and high combustion efficiency ensure safe, consistent, and cost-effective operation during prolonged use.

Optional Accessories & Upgrades

Available optional configurations include one-way 600 mm, two-way 500 mm, and four-way 350 mm outlets, Riello and Ecoflam diesel burners, LPG Riello burner with gas train, Natural Gas Riello burner with gas train, and a Dual Voltage Kit.

Buy the Arcotherm Package Jumbo 235M Indirect Oil Fired Heater from National Heater Shops — trusted Arcotherm quality, expert support, and fast UK delivery.

JMB235ECOKIT

Heater Dimensions: 2245mm x 982mm x 1584mm
Packaged Heater Dimensions: 2200mm x 880mm x 1560mm
Product Weight: 357kg
Packaged Weight: 377kg
Heating Capacity: 218kW
Heat Efficiency: 92%
Air Flow: 17,000m³/h
Air Temperature: 55℃
Fuel Consumption: 18.65l/hr
Electrical Power: 2550W

100% Clean Hot Air: The heater blows out 100% clean, fume-free warm air from its warm air outlet. This makes it ideal for heating enclosed areas safely, such as marquees and tents, workshops, warehouses, areas on construction sites and much more.

High Quality Components: High-performance 7-blade fan assembly and redesigned combustion chamber, Jumbo Tiger Loop, 450mm One Way Adaptor, Jumbo Ecoflam Diesel Burner, 300mm Crush Proof Fuel Hose, 6000 Series ISO Male Tip Pro and BSPP Male x BSPP Male adapter.

Ducting Connection: Sections of ducting can be attached to this heater, to direct the clean warm air into the space that you need to heat.

Portable Design: Large wheels and a handle make the heater very portable. It is easy to transport, position and re-position when required on site. Lifting eyes on top of the unit allow it to be lifted on and off transport.

Thermostat Connectivity: An optional heavy-duty thermostat can be connected to this heater, allowing you to set a required temperature within the space. The thermostat will switch the heater on and off as required to maintain the set temperature. This saves fuel and adds extra convenience.

Flue Gas Exhaust: Combustion by-products are exhausted out of the top of the heater. Sections of flue pipe are available separately, allowing you to safely vent exhaust fumes away from the space.

Tough & Robust: Built to perform in challenging areas, including construction sites, workshops, warehouses, agriculture, events and more.

Tigerloop Included: This heater features no internal fuel tank. It is designed to be connected to an external fuel tank of your choice. The tigerloop removes any air from the fuel as it enters the heater.
