Arcotherm Jumbo 110M Indirect Oil Fired Space Heater - 240v 102kW

Arcotherm Jumbo 110M Indirect Space Heater

Powerful & efficient heating

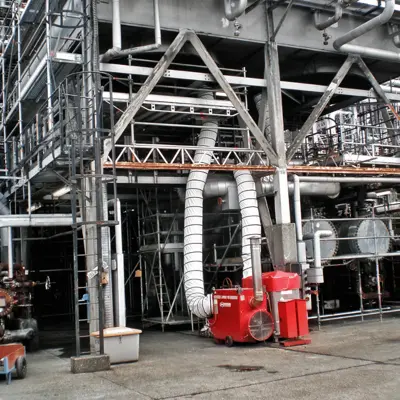

The Arcotherm Jumbo 110M is an effective indirect space heater that quickly warms large spaces like warehouses, factories, garages, farmhouses, and more. The Jumbo 110M is a highly-productive indirect heater with an incredible 102kW output, impressive 9000m³/hr airflow, and 92 -93% heating efficiency. You can use these hard-wearing units to safely and efficiently provide hot, clean air to any space while expelling any waste fumes out into the open. These heaters are excellent for providing warmth in working areas with challenging conditions, agricultural applications such as drop drying, and for intensive drying on construction sites, buildings, etc., following adverse weather.

Excellent Build Quality

Robust. Durable. Heavy-duty.

The Jumbo 110M is a large, hard-wearing unit with the toughness to withstand the demands of regular use in difficult environments. The outer shell is constructed from steel with reinforcement cross pleats that provide extra strength and rigidity. The shell is designed to protect the working components from all ingress and physical impacts, and the panels are also removable for convenient access for internal cleaning and maintenance. Every major component, such as the fan, burner, thermostat, etc., are provided with quick couplings. The quick couplings have an IP65 rating and allow for faster assembly, maintenance, and eliminate mistakes. The 110M features Arcotherms redesigned combustion chamber and high-performance, 7-blade fan. The advantage of these new integral parts is a low operating noise and uniform diffusion of air with high static pressure. The electrical controls are placed for element ingress protection with an IP65 rating and allow for straightforward monitoring of all functions.

Arcotherm Jumbo 110M

Available with a range of accessories

There is an excellent range of additional extras available for customisation of this space heater to suit your specific needs. The robust PVC ducting allows you to direct warm air into any space up to 5 metres away from the space heater for areas without sufficient floor space or are busy and fast-paced environments. A two-way splitter can be used in conjunction with muliple lengths of PVC ducting so that you can heat more than one space at the same time. The standard ducting, splitters, splitter ducting, thermostat, flue, and rain cowl are available to select with the tick boxes below your cart. We can also supply a fuel tank, side bumper kit, lifting kit, swivelling wheels kit, pre heated oil filter, flue storage kit, and chimney support kit available on request. The accessories allow you to safely leave the Jumbo 110M running unattended in barns, stables, and on worksites with the fumes safely exhausted. Enquire today or order with confidence via our online checkout or by phone to talk to our expert sales team directly.

Heater Dimensions: 1765mm x 800mm x 1214mm
Packaged Heater Dimensions: 1775mm x 710mm x 1240mm
Product Weight: 200kg
Packaged Weight: 220kg
Heating Capacity: 102kW
Heat Efficiency: 92.8%
Air Flow: 9,000m³/h
Air Temperature: 49℃
Fuel Consumption: 8.74l/hr
Electrical Power: 1100W

100% Clean Hot Air: The heater blows out 100% clean, fume-free warm air from its warm air outlet. This makes it ideal for heating enclosed areas safely, such as marquees and tents, workshops, warehouses, areas on construction sites and much more.

Ducting Connection: Sections of ducting can be attached to this heater, in order to direct the clean warm air into the space that you need to heat.

Flue Gas Exhaust: Combustion by-products are exhausted out of the top of the heater. Sections of flue pipe are available separately, allowing you to safely vent exhaust fumes away from the space.

High Quality Components: High-performance 7-blade fan assembly and redesigned combustion chamber,

Tough & Robust: Built to perform in challenging areas, including construction sites, workshops, warehouses, agriculture, events and more.

Portable Design: Large wheels and a handle make the heater very portable. It is easy to transport, position and re-position when required on site. Lifting eyes on top of the unit allow it to be lifted on and off transport.

Thermostat Connectivity: An optional heavy duty thermostat can be connected to this heater, allowing you to set a required temperature within the space. The thermostat will switch the heater on and off as required in order to maintain the set temperature. This saves fuel and adds extra convenience.

Tigerloop Available: This heater features no internal fuel tank. It is designed to be connected to an external fuel tank of your choice. The tigerloop removes any air from the fuel as it enters the heater.
