Arcotherm GE36 Direct Space Heater - Dual Voltage 39kW

Arcotherm GE36 Direct Space Heater

Ideal for heating well ventilated industrial spaces

The Arcotherm GE36 direct fired oil heater is used for localised heating in workshops, foundries, construction, horticultural, and agricultural applications. The direct combustion method used by these heaters provides an extremely efficient and cost effective method of spaceheating, though they should only be used in areas with lots of ventilation, due to the effects of oxygen depletion and any fumes produced during combustion, which could affect people in a confined space with no ventilation.

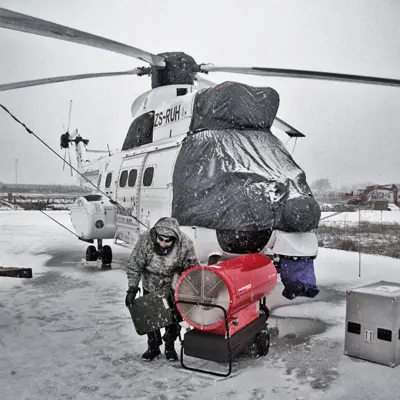

This direct space heater is a compact and convenient site heater, as it can be wheeled into position on construction sites, in warehouses and agricultural areas quickly and easily to keep the workforce warm and speed up drying times on painting and decorating jobs.

High quality design

Made by the experts

Arcotherm are experts in space heating. Harnessing their technical expertise, years of experience, the finest components and heating technologies, Arcotherm manufacture some of the best, most trusted and reliable space heaters on the market.

The GE36 is no exception to Arcotherm’s high standards. Featuring a robust hydrocarbon resistant polythene fuel tank, AISI 430 stainless steel combustion chamber, electronic flame control, safety thermostat, automatic built in oil burner, Danfoss pump and electronic control panel, you can be sure of reliability, safety and effectiveness.

This direct diesel heater is mounted on a set of strong wheels with a handle bar, which allows it to be moved around the area you are heating and placed into position easily. It can also be used in conjunction with a thermostat for total temperature control.

Heater Dimensions: 1075mm x 440mm x 615mm
Packaged Heater Dimensions: 1050mm x 400mm x 520mm
Product Weight: 25kg
Packaged Weight: 29kg
Heating Capacity: 39kW
Heat Efficiency: 100%
Air Flow: 605m³/hr
Air Temperature: 177℃
Fuel Consumption: 3.04 l/hr
Tank Capacity: 42L
Electrical Power: 232w
Runtime constant per tank of fuel: 12 hrs

Fast, Efficient & Cost Effective Heat: Provides a simple, convenient and effective way of heating a range of outdoor and well-ventilated spaces. Please note, direct fired heaters must not be used in indoor / poorly ventilated spaces.

Tough & Robust Construction: Built to perform in challenging areas, including construction sites, yards, workshops, warehouses, agriculture and more.

High Quality Components: Robust hydrocarbon resistant polythene fuel tank, AISI 430 stainless steel combustion chamber, electronic flame control, safety thermostat, automatic built in oil burner, Danfoss pump and electronic control panel ensure safe, reliable and effective operation.

Easy To Use Control Panel: No complex controls, for quick and easy start up.

On Board Fuel Tank: 42 litre on board fuel tank provides up to 12 hours of use.

Portable Design: Large wheels and a handle make the heater very portable. It is easy to transport, position and re-position when required on site.

Dual Voltage Power Supply: Can be powered by either a 230v or 110v power supply.

Thermostat Connectivity: An optional thermostat can be connected to this heater, allowing you to set a required temperature. The thermostat will switch the heater on and off as required in order to maintain the set temperature. This saves fuel and adds extra convenience.

Overheat Thermostat: Shuts down the heater automatically if it overheats, to prevent accidents.
